How to solve If there is no live view/streaming on CMSV6

Posted by HIKWAY Technology fleet management solutions on 26th Mar 2022

How to solve If there is no live view/streaming on CMSV6

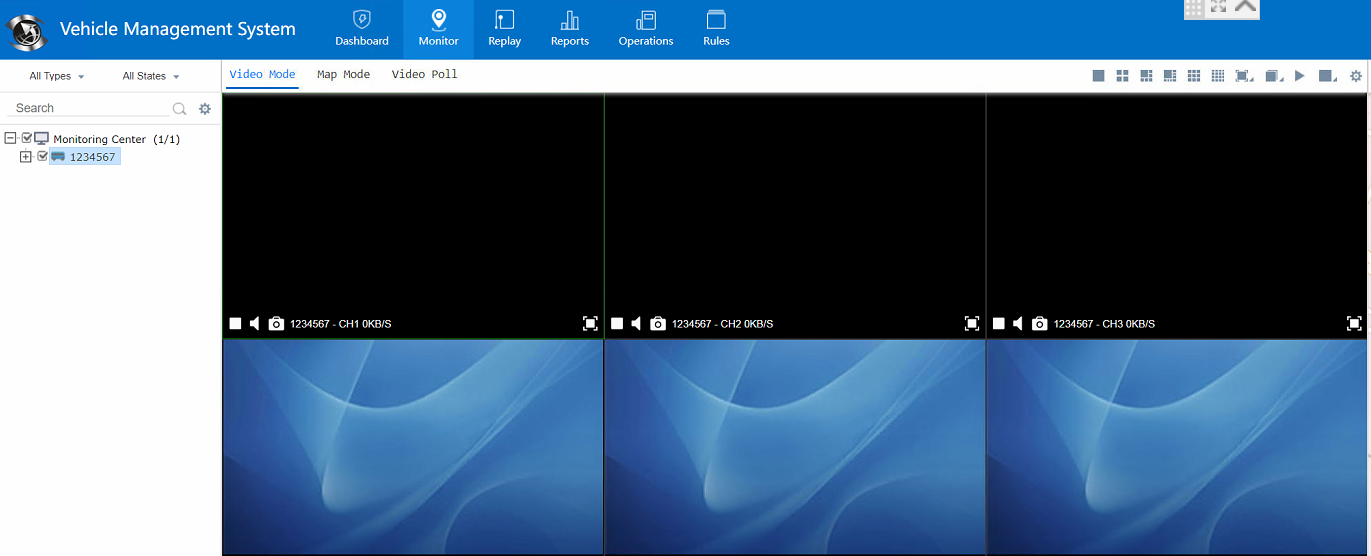

For the new set up of cmsv6 server, if there is no live video shown on the client software like below:

You need to check:

1. If the ports has been forwarded:


Server name
Ports

Description
Note
Login server 6605、6606 6606为设备访问端口

6605为客户端服务端口

6606为UDP及TCP

6605为TCP及UDP

Gateway server 6607、6608 6608为设备访问端口

6607为客户端服务端口

6608为UDP及TCP

6607为TCP及UDP

Streaming server 6602、6604 6602为设备访问端口

6601为客户端服务端口

6602为TCP及UDP

6604为TCP及UDP

User management server 6603 6603为客户服务端口 6603为TCP及UDP
main server port 6601 6601为主服务端口 6601为TCP及UDP
Wifi auto download server 6609、6610 6610为设备访问端口

6609为客户端服务端口

6610为TCP及UDP

6609为TCP及UDP

Storage server 6611、6612 6612为设备访问端口

6611为客户端服务端口

6612为TCP及UDP

6611为TCP及UDP

WEB Server 80(或88/8080/8088) 80为客户服务端口 80为TCP
multi-channel streaming media 6617-6622 Web流媒体多路使用端口 6617-6622为TCP

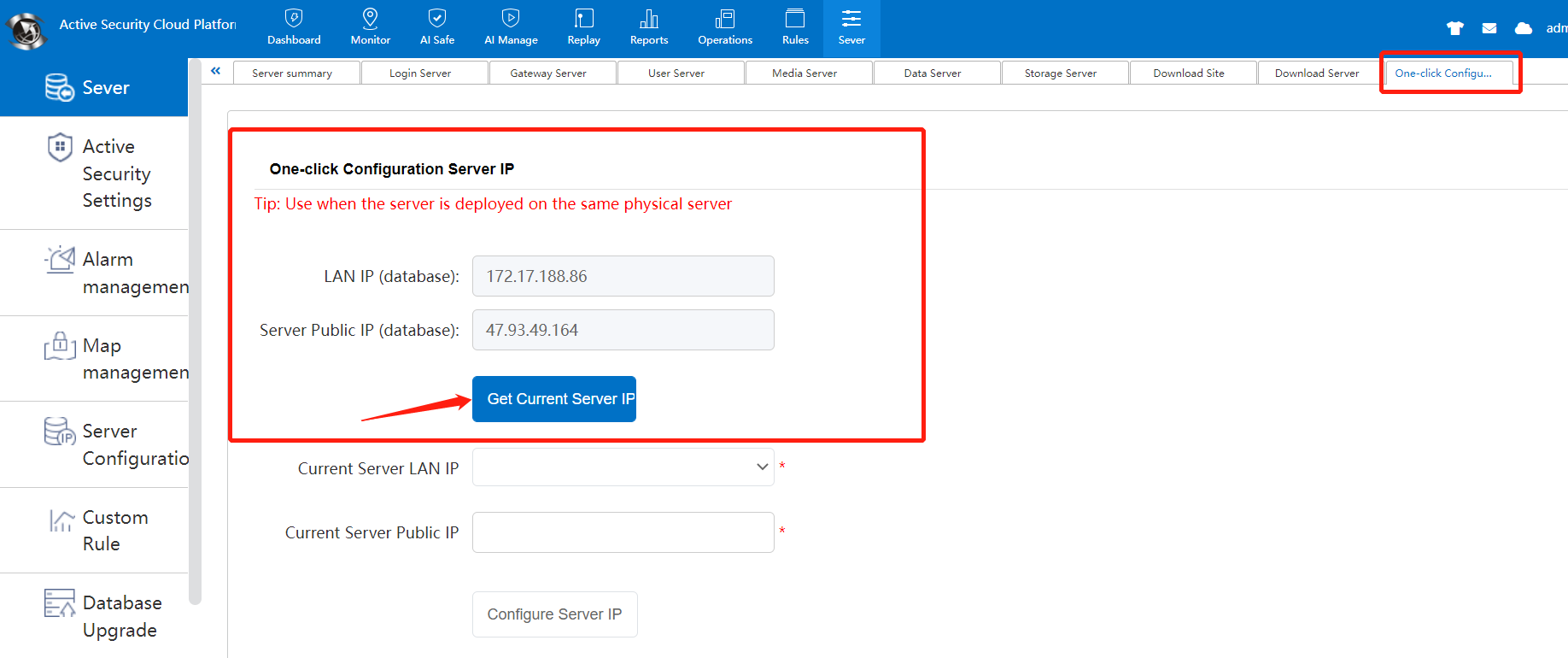

2. Check if ip configuration is correct:

And after that, the problem should be solved.
