Product Overview
DESCRIPTION:
- A6H82G is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring.
- It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI.
- It supports not only video recording in 1080N, 720P, AHD, D1, HD1 and CIF formats, but also vehicle travel information recording and wireless data upload.

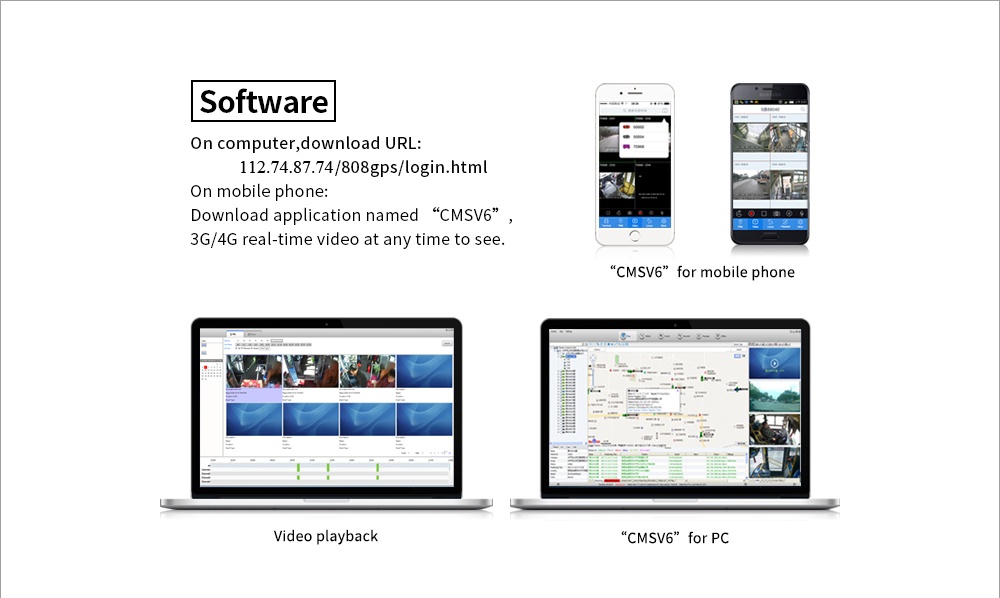

- With center software it also achieves alarm linkage central monitoring, remote management and playback analysis.
- It is easy to use with simple design, multi-functions, HDD+SD card, superior anti-vibration, flexible installation and high reliability.
FEATURES:
1. Supports 8 channels AHD 1080N
2. Supports HDD/SSD upto 2TB for main recording
3. Supports GPS for location tracking, optional
4. Supports WIFI for video files download, optional
5. Built-in 3G/4G for live view and remote management, optional
6. VGA output standard
7. Built-in G-sensor
8. Built-in super capacitor
SPECS:
|
Item |
Parameter |
||
|
OS |
Linux |
||
|
Video Compression |
H.264 |
||
|
OSD |
date/time, vehicle ID, etc |
||
|
GUI |
Graphic OSD |
Connect to external monitor, use mouse to set parameters |
|
|
Video& Recording |
Video Input |
8CH 1080N(960*1080) AHD, 4pin Aviation Din, 1.0Vp-p, 75Ω |
|
|
Video Output |
1CH AV output+1CH VGA output, 1.0Vp-p, 75Ω |
||
|
Preview |
1/4/9ch split display, Support Event alarm, Rear view full display function. |
||
|
Resolution |
8CH 1080N, and 720P、D1、HD1、CIF optional, |
||
|
Image quality |
0-7 levels adjustable (0 is the best) |
||
|
Recording Mode |
Boot up/Manual/Schedule/Alarm |
||
|
Audio |
Audio input |
8CH |
|
|
Audio output |
1CH |
||
|
Compression |
G.726 , Speed 8KB/s |
||
|
Alarm Input |
4CH |
||
|
Alarm Output |
1CH |
||
|
Serial Interface |
1CH RS485 (can be expansible to 2ch RS485 and 2ch RS232) |
||
|
USB Interface |
1 USB 2.0 (support U disk/mouse) |
||
|
Wireless transmission |
Optional, 3G/4G,WCDMA,CDMA2000,TDD-LTE,FDD-LTE.... |
||
|
Position / G-sensor |
GPS optional 、built-in G-sensor，Playback of the route |
||
|
Storage |
HDD/SD |
Maxium 1*2TB HDD, 1*256GB SD card |
|
|
playback |
Video search |
by time, mode, etc to search |
|
|
playback |
4CH playback |
||
|
2X, 4X,8X, 16X forward and backward |
|||
|
Safety management |
user password, admin password, support screen lock. |
||
|
Expanding function |
TTS |
Support TTS voice broadcasting |
|
|
Serial expansion |
Can support advertisement screen, PTZ, oil sensor, etc |
||
|
Power and consumption |
power management |
wide voltage adaption, support timely open-shut, delay function.
|
|
|
Input voltage |
DC:+8V - +36V |
||
|
Output voltage |
+12V@1.5A，+5V@1.5A |
||
|
Power protection |
can automatically save the video when sudden power off to ensure the protection of the file. |
||
|
consumption |
Working state＜14W， idle＜0.5W |
||
|
Working environment |
Temperature |
-20℃ - +70℃ |
|
|
Humidity |
20% - 80% |
||
|
HDD model |
Dimension |
162mm*180mm*50.5mm |
|
|
Weight |
Approx. 2.35KG (without HDD) |
||
DOWNLOAD THE MANUAL OF HIKWAY A6H82G
VIDEO:
PACKING LIST:
1 x A6H82G MDVR
1 x AV cable(8ch 4pin AV in+4pin AV out+MIC)
2 x MDVR key
1 x power cable(black: V-; red: V+; yellow: ACC)
1 x Manual
1 x IO cable(ALM1-4, GND, RS485)
1 x Remote control
1 x CD (software)
4 x HDD screws
PHOTOS:
APPLICATION:
This HD Mobile DVR can be applied in multiply of vehicle industry for mobile surveillance, such as public bus, Passenger bus, school bus, trucks, logistics, cargo vans, RV'S, trailers, emergency vehicles, pickup trucks, industrial vehicles, agricultural vehicles, etc. The MDVR is with high definition video recording, it can connect with both AHD cameras and analogue cameras for vehicle CCTV to protect your personnels and valuable goods.
