Product Overview
INTRODUCTION:
Bus Passenger Counter (BPC) is a smart compact device backed by stereoscopic distinguish technology same as KINEC.It is designed for counting people cross doors of buses, trains and other entrances. The video counter works with binocular cameras, which can offer the most accurate counting in the vehicle from morning to evening.
BPC will detect and analysis the height, shape, direction of moving objects when somebody crosses the field of surveillance. The counter will generate a piece of record to show IN or OUT result. All records will save in the memory of counter. With WIFI or RS-232, user can download or transfer these records to online platform.
Binocular Stereo Vision is a vital technology in this device. According to visual parallax theory, counter can compute image position deviationto obtain object 3D geometrical information. To combine two CCD chips to observe the differences between each other. Finally we can get the actual depth, shape and other useful information to confirm whether it is a body.
VIDEO:
FEATURES&SPECS:
High precision counting accuracy (>97%)
720P AHD CMOS Sensor
Effective pixel 1280*720
IP 65, Dust proof
0.05 Lux (LED is OFF)
Metal IR-Cut
12V DC input
180×64×55 mm（L×W×H）
NOTE: This is a project purpose product, for more details, pls send us email: info@mdvronline.com
Download the bus passenger counter user manual
CMSV6 Settings and Report:

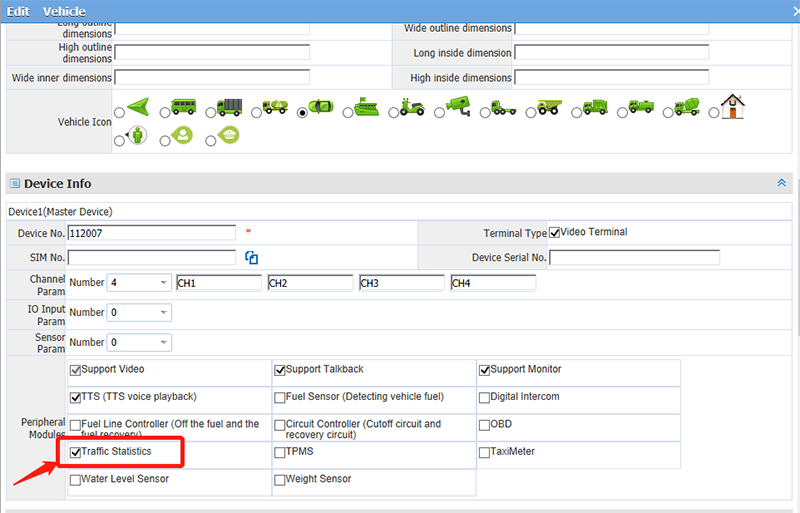

1. Add personnel peripheral modules to the CMSV6 platform.
Only devices with personnel statistics can generate statistics on the number of people in the report and check the peripheral module in the vehicle information.
When the people counter generates data, the terminal will report to the server to generate a report.

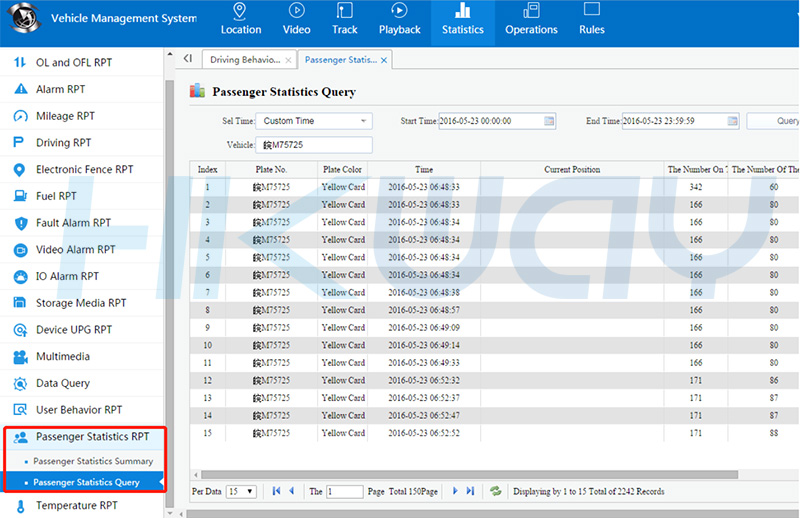

passenger statistics summary: You can query how many people get on the vehicle, how many people get off the vehicle, and how many people change in a certain period of time.
passenger statistics query: You can query the number of people who get on and off the door and the number of people on the vehicle and the number of people in a certain period of time.
System Functions:
1. Statistics of the number of people on the bus
Through the real-time monitoring of the passenger monitoring area of ​​the bus entrance and exit, the number of people in and out of the area is counted, the real-time flow of personnel and vehicles is mastered, and the number of passengers and the number of vehicles in different periods are calculated in real time to assist users in important periods or important management Organization, coordination and management
2. Count the number of passengers getting on and off at each station
Count the number of passengers on the front and rear doors of the vehicle and the total number of people in the car that are constantly changing, record the number of passengers on each station, and make corresponding report and icon analysis
3. Multiple people pass the test at the same time
Accurately count the number of people entering and exiting the channel and provide information such as the direction and speed of crowd flow. The user can designate one or more entrances and exits as required, and can also specify the statistics of the flow of people in a single direction, two directions, and multiple people crossing
4. Generate reports on statistical data
Through the 3G/GPRS wireless network, the management center can obtain and print a variety of passenger flow statistics and analysis data reports from GPS terminals or on-board DVRs, and scientifically analyze data such as vehicle carrying capacity, peak passenger flow, and crowded stations and times, and follow up According to the analysis results, take corresponding targeted measures to realize the intelligent management of public transportation and long-distance passenger transportation in the true sense.
5. Intelligent analysis of passengers entering and leaving
The intelligent video passenger flow statistics system can accurately detect the number of crowds and distinguish each person's flow information in the complex crowd environment in the car, such as analyzing the passengers' entry and exit directions, and make corresponding data increments and decrements, keeping the data and passengers' actual The quantity is unified.
You may also need the following components to consist the whole system:
1. Mobile DVR (for recording video and data transmission)
2. HD camera (for video surveillance of each part of vehicle)
etc
