Product Overview
INTRODUCTION:
SVT-PSwitch (V5.0)-N4UM is a switch specially designed for the HD MDVR market. It is easy to install, and supports multi-channel IPC access and PON power supply without extra configurations.
FEATURES:
1)The shell is made of high-strength materials for terrible environments.
2)It connects the MDVR to RJ45 ports with specially designed buckles to ensure the reliable connection in vibration environments.
3)It uses IPC Six-pin Aviation connectors to ensure the reliable connection in vibration environments.
4)It supports DC 8-36V input, which is suitable for 12V and 24V vehicles.
5)It has one 10/100/1000M adaptive RJ45 uplink port, and four 10/100M adaptive downlink ports for Six-pin Aviation connectors.
6)Power supply standard applies to ISO 7637-2.
7)Anti-vibration standard applies to MIL-STD-810F.
8)Certifications: E-mark, CE & FCC.
SPECIFICATIONS:
|
Items |
Description |
|
|
Ports |
Feature |
10/100M adaptive (uplink port) 10/100M adaptive (downlink port) |
|
|
Type |
One RJ45 Port (for MDVR Cable) Four Six-pin Aviation Connectors (for IPC Cable) |
|
|
Transmission Medium |
UTP 5-e and above |
|
Power |
≤3W |
|
|
|
Power Input |
DC 8-36V + MDVR supply DC12V |
|
|
Camera Power Supply |
12V with each port supporting 7W |
|
|
Power Supply Standard |
Each input port has the anti-surge capability with car power input port applying to the ISO 7637-2 standard. |
|
Other Parameters |
LED Indication |
POWER/ MDVR/ IPC |
|
|
Anti-vibration Standard |
MIL-STD-810F |
|
|

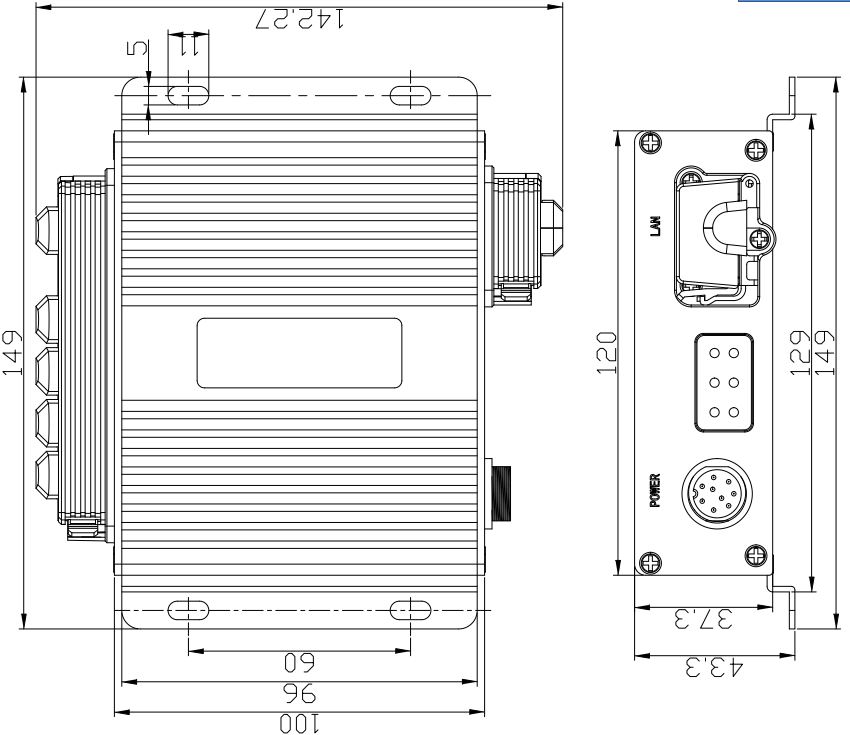

Dimensions |
126.89mm (L) x 149mm (W) x 43.3mm (H) |
|
|
Weight |
0.63 kg |
|
|
Work Environment |
Operating Temperature: -40℃ to 70℃ |

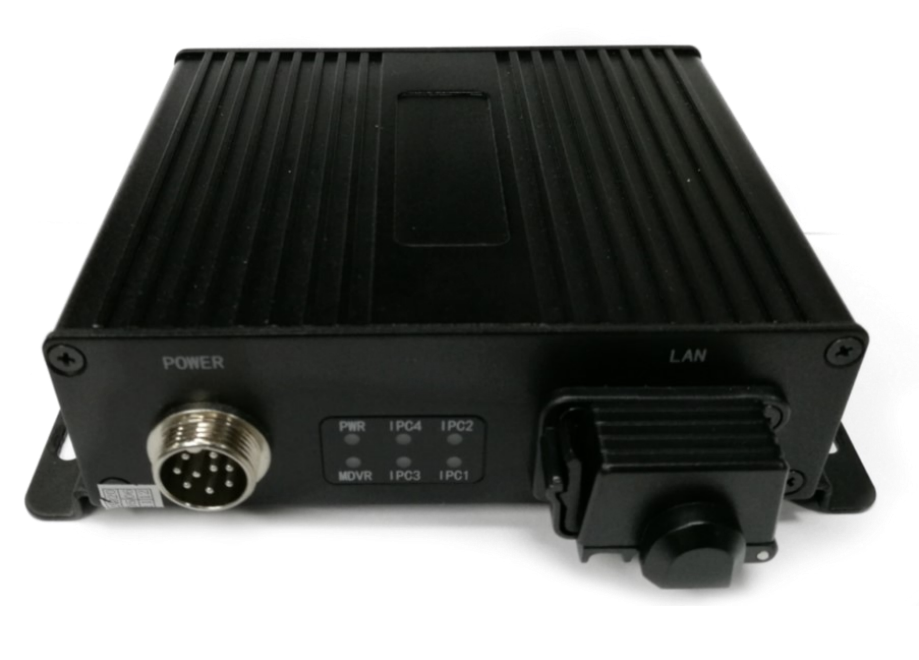

PHOTO:
