Product Overview

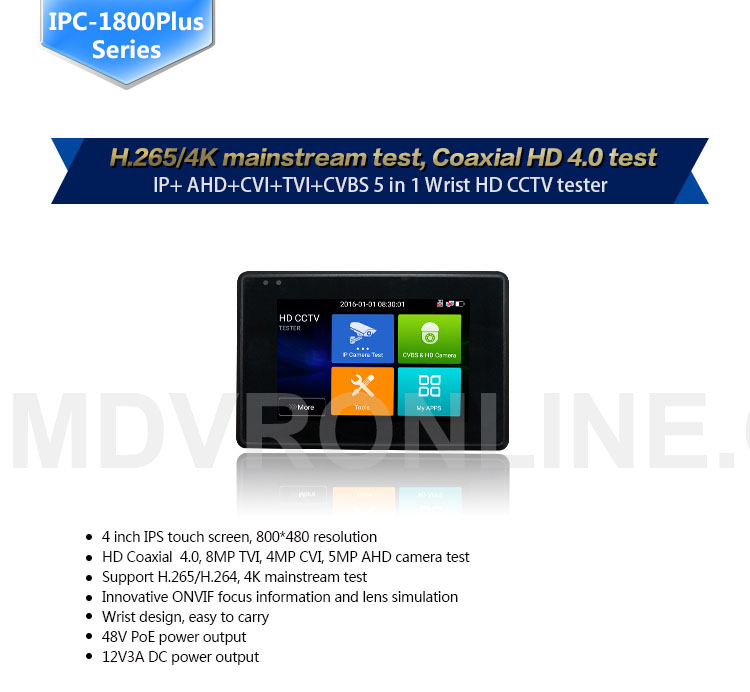

New 4" wrist coaxial HD 4.0 CCTV Tester Monitor 4K H.265 IP CVI TVI AHD CVBS Camera tester with WIFI hotspot PTZ Control
IPC 1800 plus support : 8MP TVI / 4MP CVI / 5MP AHD / 4K H.265 IP / CVBS camera test
INTRODUCTION:
The 4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 800*480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
APPLICATION:
- CCTV system installation and maintenance
- Network cabling project installation and maintenance
- Dome camera, IP TVI CVI AHD 4K H.265 camera testing
- Video transmission channel testing
- PTZ controller
VIDEO:
MODEL: IPC1800
● 8MP TVI/4MP CVI/5MP AHD/4K H.265 IP /CVBS
● H.265/H.264, 4K video display via mainstream
● Dahua, Hikvision, Axis etc ONVIF camera test
● Rapid ONVIF, auto view video and create testing report
● DC12V 3A, DC48V PoE power output
● Built in WIFI, create WIFI hotspot
● Innovative coaxial HD focus, video signal quality test
● Wrist design, portable and easier to carry
● 10/100/100M Ethernet, network state and traffic display
CAMERA TEST:

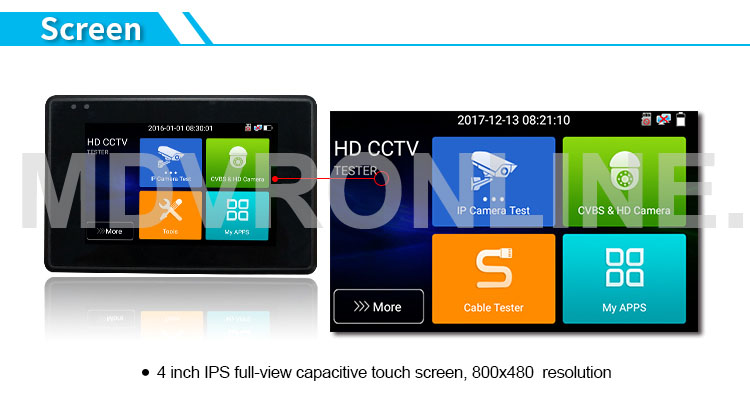

● 4 inch touch screen, 800*480 resolution
● H.265 & H .264 IP, 4K video display via mainstream
● Rapid ONVIF, Auto log in and display image, create testing report
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

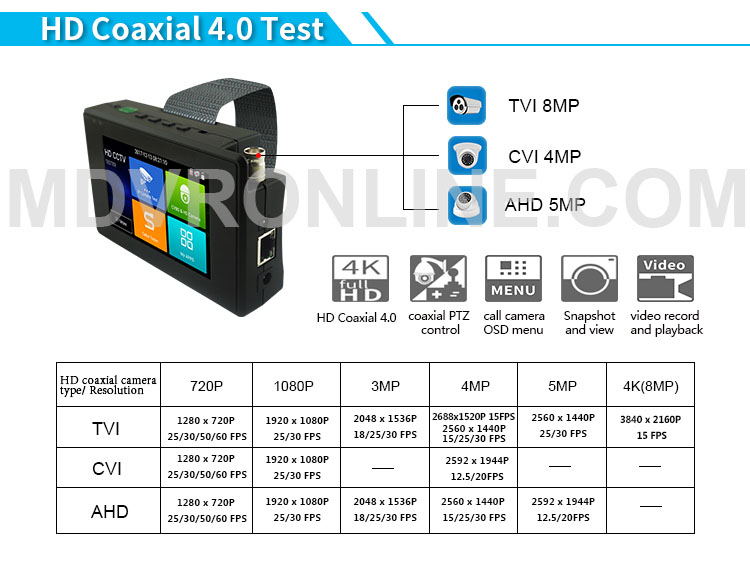

● 8MP TVI/4MP CVI/5MP AHD
● CVBS camera test and PTZ control
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● IP discovery, just by one key to detect all network cameras IP address
● Rapid video, just by one key to detect all network cameras and auto display
● DC 12V 3A power output

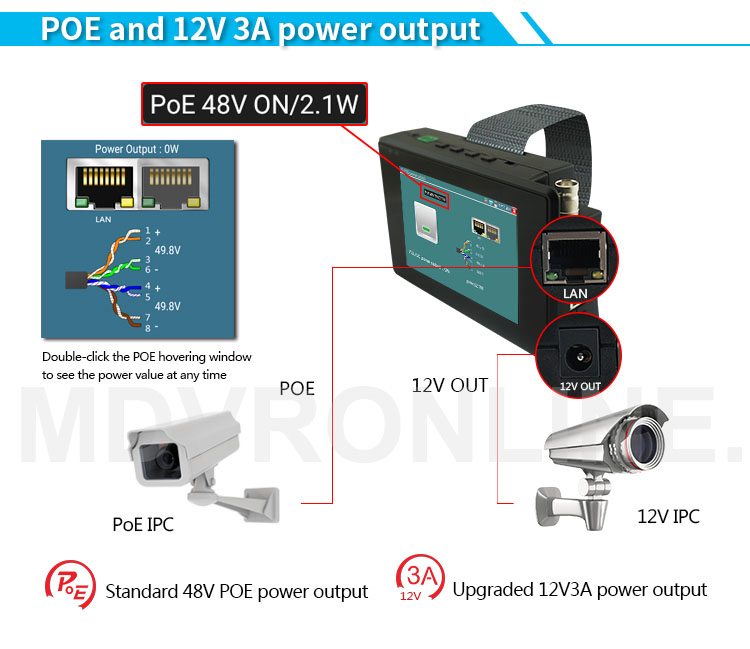

● PoE DC48V power output, Max power 24W

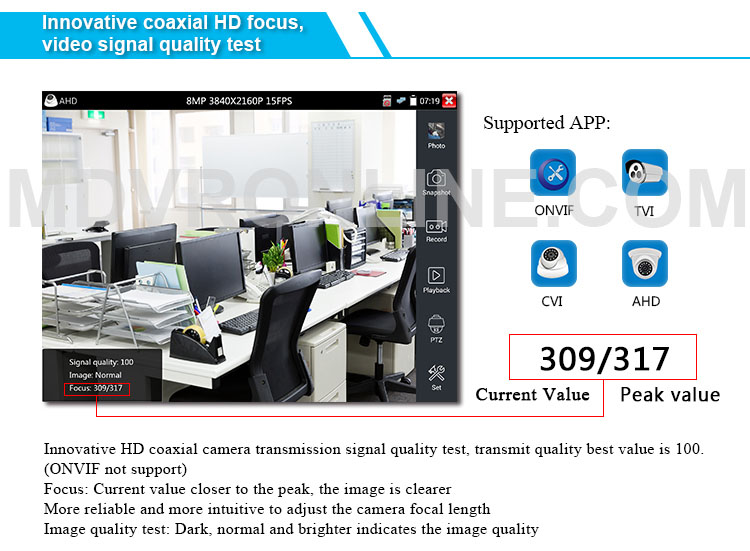

● Innovative coaxial HD focus, video signal quality test
● Built in WiFi, display image from the wireless camera, create WIFI hotspot
OTHER FUNCTIONS:
● 10/100/1000M Ethernet, network state and traffic display
● Wrist design, portable and easier to carry
● TesterPlay: Tester, android version mobile phone, PC display at the same time
● Network tool: PING test, IP address scan, port flashing etc
● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 8 hours

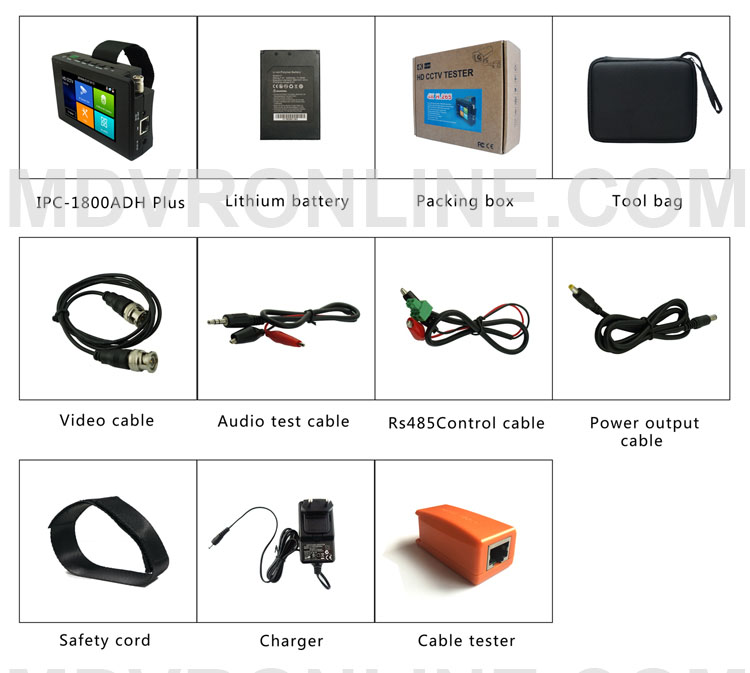

PHOTOS:
