Instruction for vehicle PTZ with Hikway MDVR

Posted by HIKWAY Technology fleet management solutions on 9th Dec 2020

Instruction for vehicle PTZ with Hikway MDVR

There are two situations for the PTZ wiring and functioning:

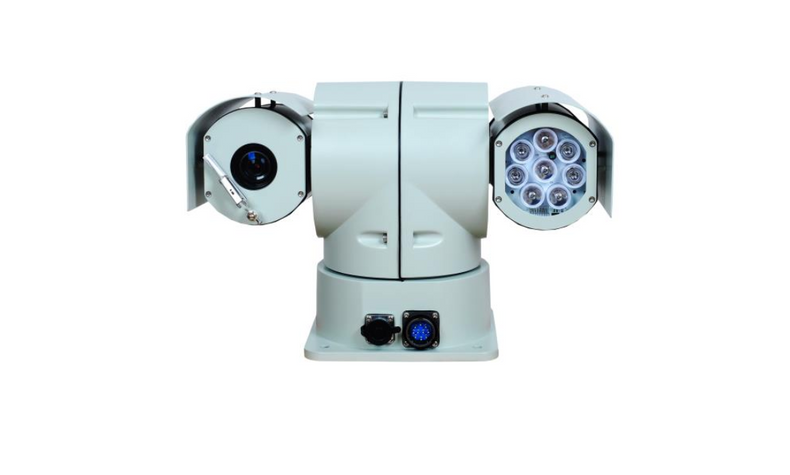

Hikway AHD PTZ

Method 1: MDVR connects to PTZ through RS485

1. First connect the Vehicle PTZ camera to 12V power.

The wiring method is "RS485+ of PTZ connected to RS485A of device I/O serial port, RS485- of PTZ to MDVR RS485B"

2. Enter the menu-settings-serial port settings-serial port

Set the serial port configuration to RS485 corresponding to the wiring

Set the baud rate to 2400 (control the baud rate of the PTZ)

3. Enter the menu-settings-serial port settings-PTZ

Change the access channel of the PTZ to(e.g. CH 1):

4. Control by remote control:

Press the PTZ of the remote control first, and then press the up, down, left, and right buttons to control the direction of the pan/tilt. Press "ZOOM-" and "ZOOM+" to control the image zoom.

5. Control the PTZ rotation through the CMSV6 platform:
