Product Overview
Ultrasonic Fuel Level Sensor All in One Design
Model: AF202
Application: M2M Devices, GPS Tracker, Mobile DVR
· No Drawings/Breaking in tank, Easy Installation
· Serial port Output: RS232(default)/RS485, Analog 0~5V
· Baud Rates: Default 9600 or Customized
· Maximum Measuring Range: 1m(default)
· Support Material: Any liquid, Diesel or Gasoline, Milk, etc.
· Support Tank: Plastic/Metal/Aluminum/Stainless Steel,etc.
· Resolution: 0.1 mm
· Accuracy: ±0.5%
· Lowest Liquid Level Detection:5~6cm
· Max. Tank thickness: 8 mm
· Max. Length of sensors cable: 15 meters
· Power supply: 8~36V DC
· Power consumption: Around 0.4 W/12 V DC
· IP66 for detector, IP61 for controller box
· Support Brands: Teltonika, Calamp, Queclink, Meitrack, Coban, Atrack, Wireless Link, etc.
Recommended GPS Tracker that can work with our ultrasonic fuel sensor：
Teltonika: FMB640,FMB630,FMB125
Queclink: GV200, GV200G, GV300
Meitrack: MVT380, T1, MVT600, MVT800
Calamp: LMU-2000, LMU-2100, LMU-2600, LMU-2700 Series.

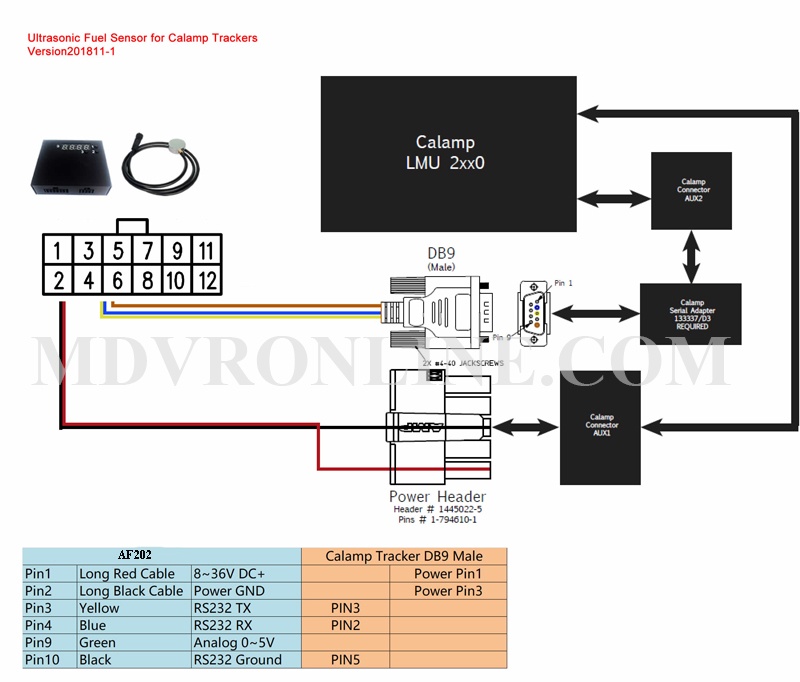

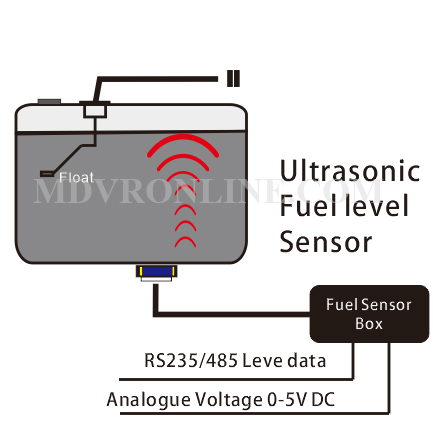

1. How to connect via RS232 (example for Calamp)
2. How to connect Analog?

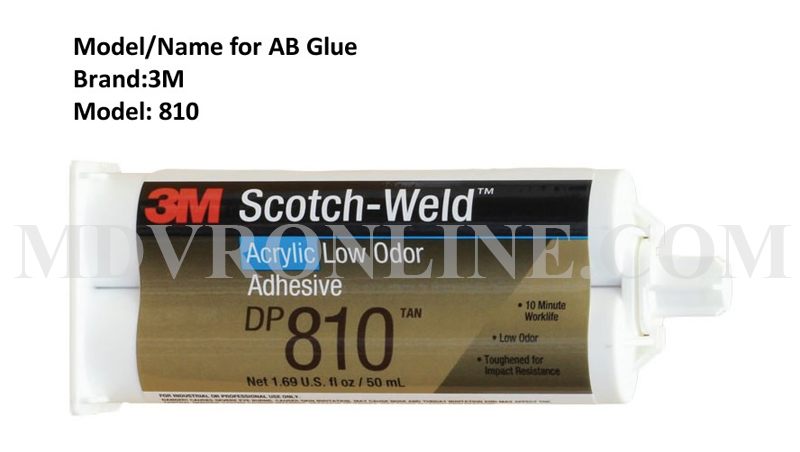

3. Recommended AB Epoxy Glue for fixing the probe on the bottom of tank:

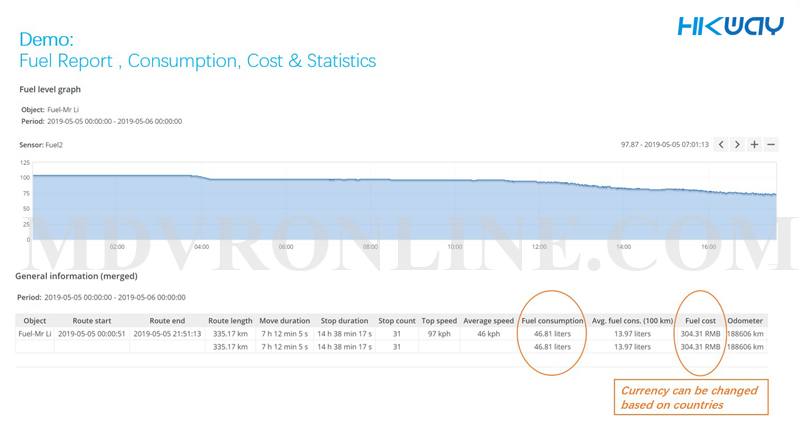

VIDEO:

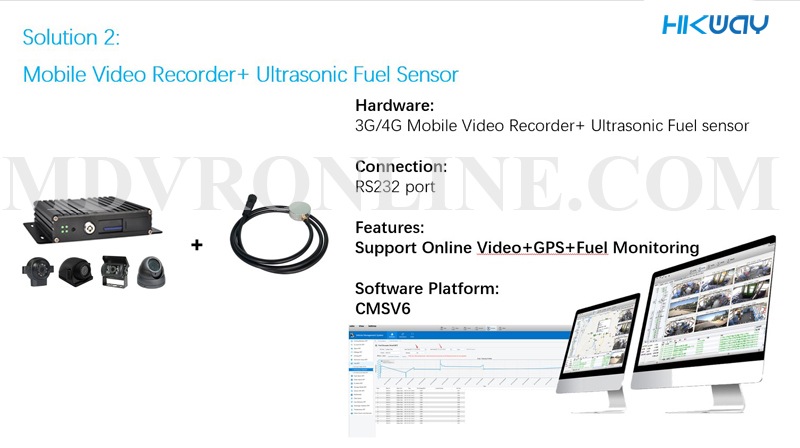

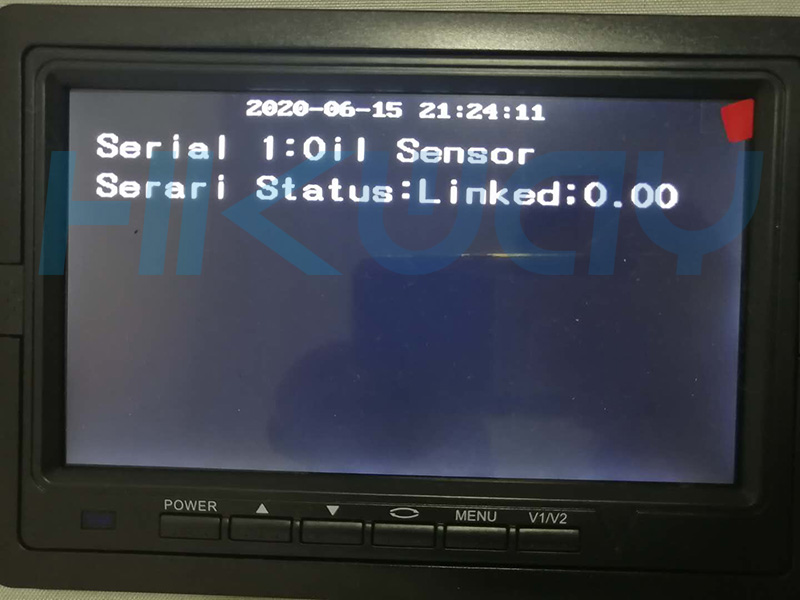

Connection and configuration:
Note: 1. For fuel sensor, you need to prepare locally: AB Epoxy Glue and Couplant Gel. (Couplant Gel: It's gel used for pregnant woman, and can be got locally in pharmancy. you can also use Hand Cream)
2. For two fuel tanks installation: one way is to install one sensor on each of the fuel tank. The other way is to install the fuel sensor on the main tank, and consider the other tank in the configuration. e.g. is one tank is 405L, the other tank is 490L, than you need to consider the fuel tank as 405+490=895L, not 490L in configuration.
DOWNLOAD THE INSTALLATION GUIDE HERE!
