Product Overview
Specification
JT-928 is a professional-grade, 4 channels , high-performance UHF electronic tag fixed reader based on the Impinj R2000 platform. With complete independent intellectual property rights, the reader's default working frequency band is 902MHz ~ 928MHz or 865-868mhz supports ISO18000-6C (EPC C1 GEN2) protocol, has strong multi-tags recognition capability, long card reading distance, high protection performance and convenient installation and configuration. Features.
Features
☆ Patent design, independent intellectual property rights;
☆ POE power supply be customized;
☆ 4 channels of RF channels superior to the industry level;
☆ Based on the Impinj R2000 platform;
☆ Support RSSI value detection;

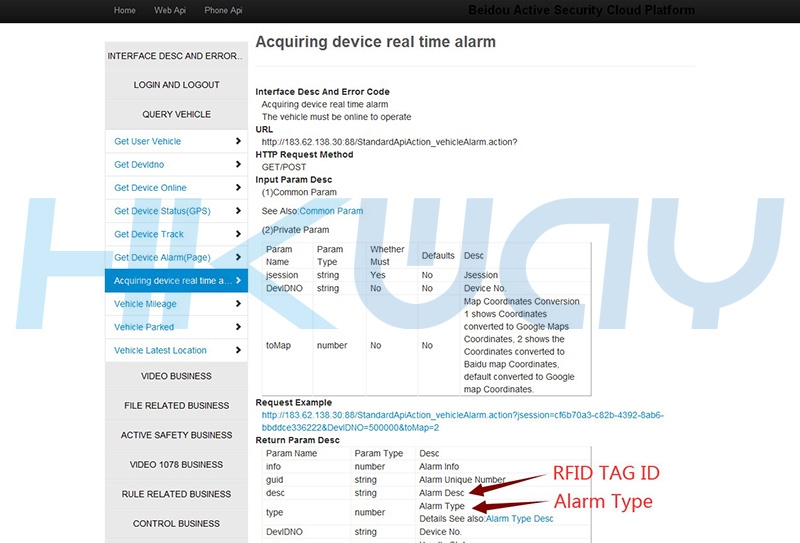

☆ Adopt standard API interface, provide DEMO and source code, support VC, CS, JAVA and other development routines;
Performance parameter
|
Technology parameter |
|
|
Working frequency |
902~928MHzï¼› 865~868 MHz |
|
Protocol |
EPC C1 Gen2 ISO18000-6C |
|
RF power |
0~33dBm（adjustable） |
|
Reading distance |
0~30m (Depend on antenna and environment ) |
|
Read rate |
＞300times/second |
|
Flash Power off save |
8Mbit (Power off save the data, customized) |
|
Time recording |
Clock chip records card reading time(customized) |
|
Label detection |
Support RSSI value detection |
|
Communication parameters |
|
|
RF interface |
4 TNC connector |
|
RS232 connector |
115200 bps (default ) |
|
TCP/IP |
230400 bps (default) |
|
I/O interface |
2 way-road relay output,2 way -road I/O input |
|
Power parameter |
|
|
power supply |
12VDC / 3A |
|
POE Power |
customized |
|
Environmental parameters |
|
|
Operating temperature |
-20℃～55℃ |
|
storage temperature |
-30℃～80℃ |
|
Storage humidity |
5%～95%RH No condensation |
|
Physical parameter |
|
|
Size |
246X160X30mm |
|
weight |
about2kg |
|
material |
Aluminum alloy |

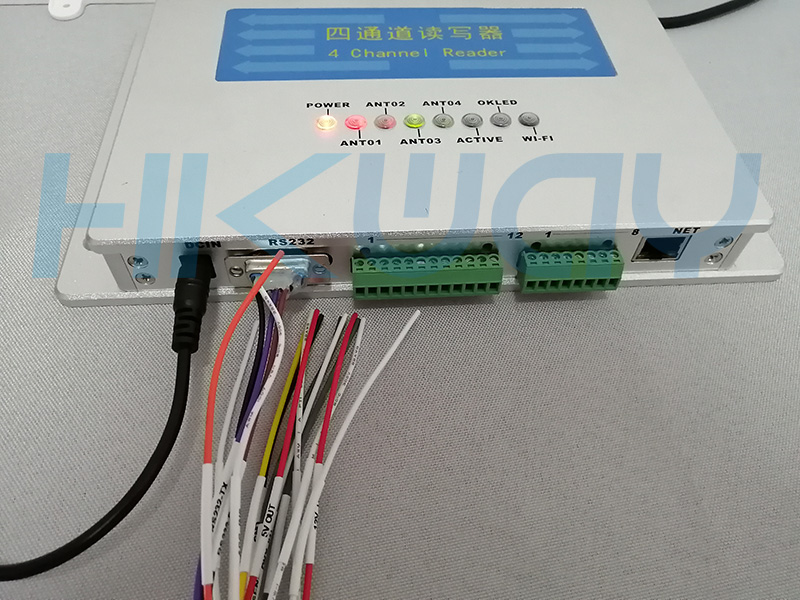

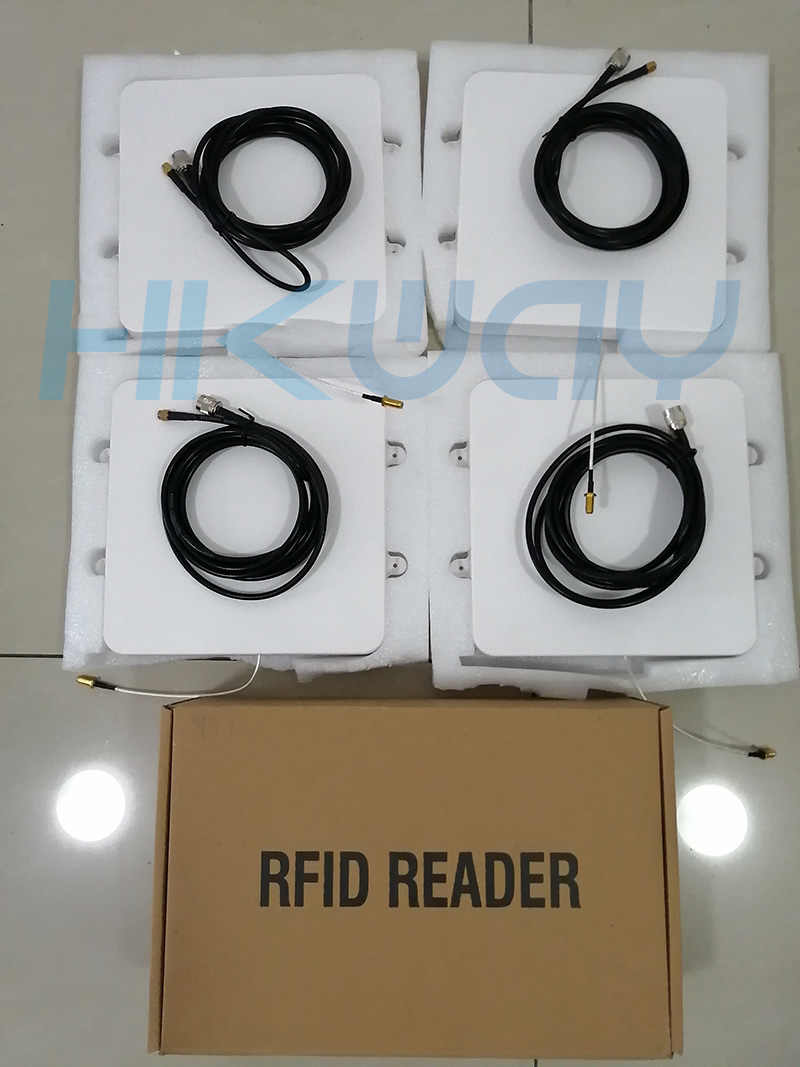

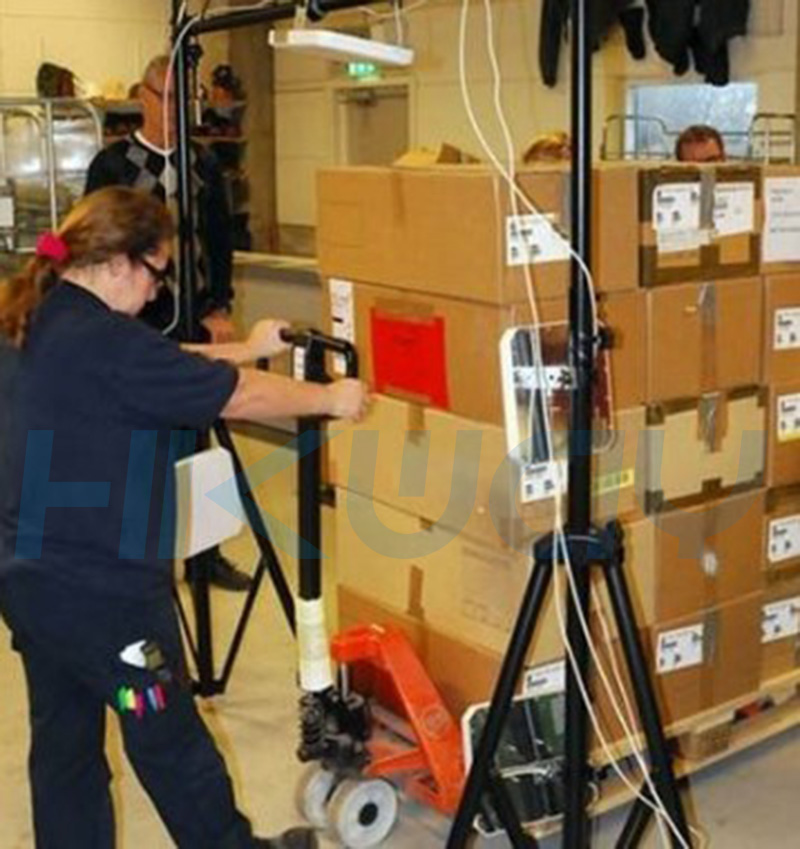

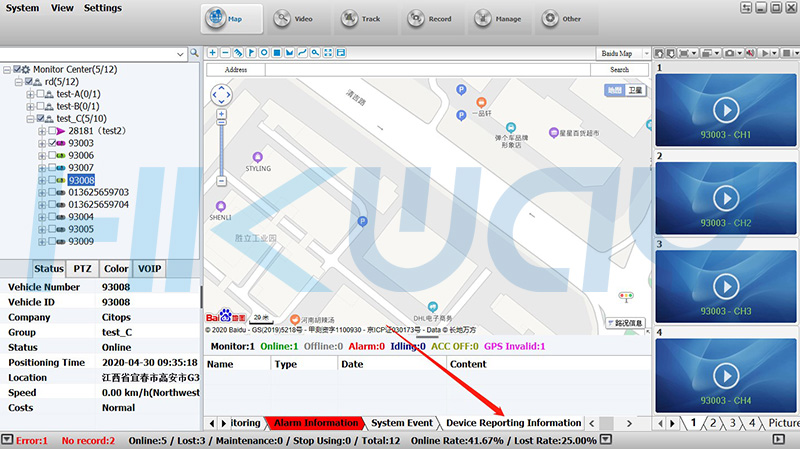

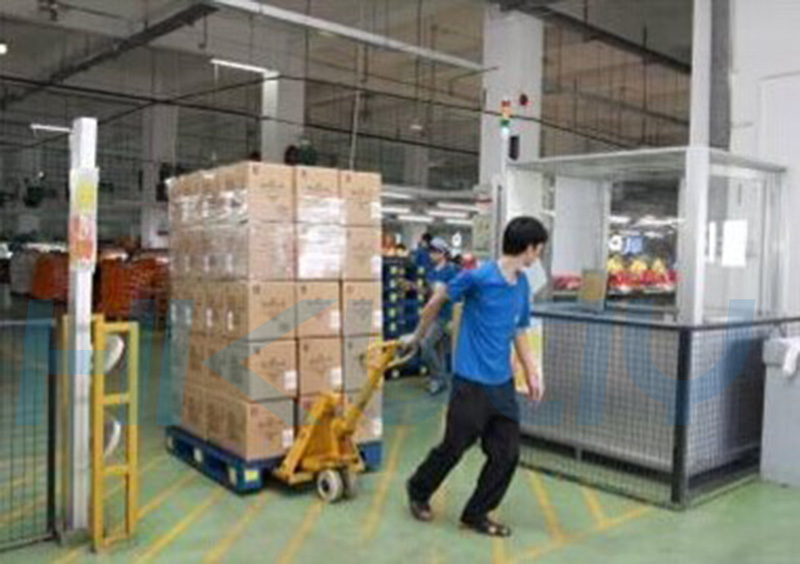

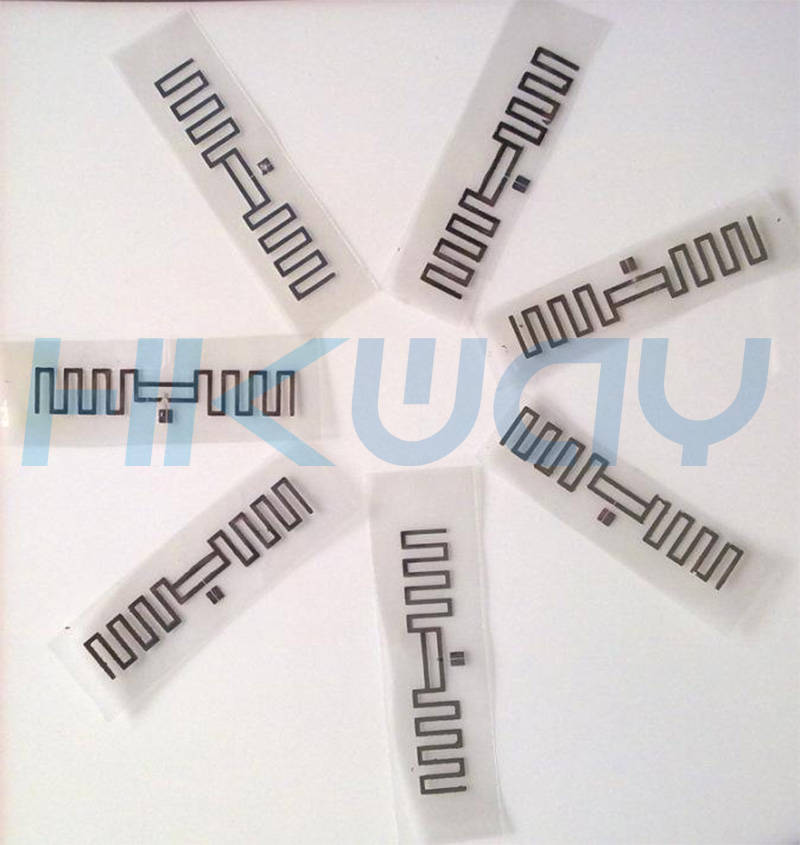

PHOTO:
