Product Overview
DESCRIPTION:
CR02 is a high frequency and non-contact IC card reader which is suitable for GPS mobile DVR device. It’s very popular among GPS MDVR end-users because of its compact size, easy installation and multi functions which is widely used for staff attendance management of logistics vehicles and other vehicles management solutions for drivers, students, etc.
VIDEO:
SPECS:
|
Protocol |
ISO14443 TypeA standard |
|
Working frequency |
13.56MHz |
|
Card type |
mafare 1 S20,mafare 1 S50, mafare 1 S70，ISO14443 Type A, etc |
|
Reading distance |
More than 50cm |
|
LED |
Two-color LED |
|
Buzzer |
To indicate swiping card successfully |
|
Data port |
TTL, RS232, RS485 |
|
Working current |
4-45V, 50mA |
|
Serial Baud rate |

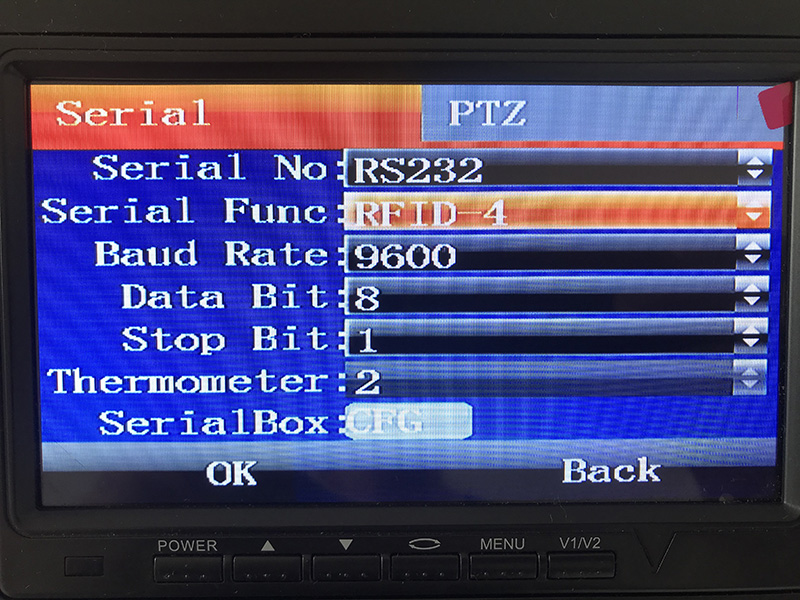

9600 Bit/s default. |
|
Size |
116 ×75× 16 (mm) |
|
Working temperature |
-40℃～85℃ |

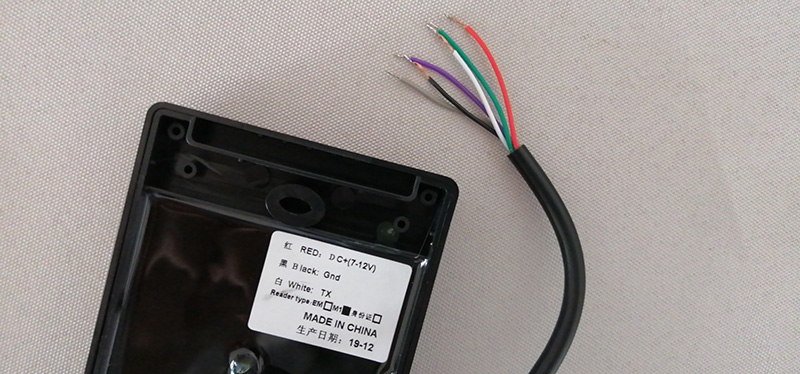

RS232 Type: White is TX, and connect to the RX wire of the mdvr. Then connect the power cable and GND.

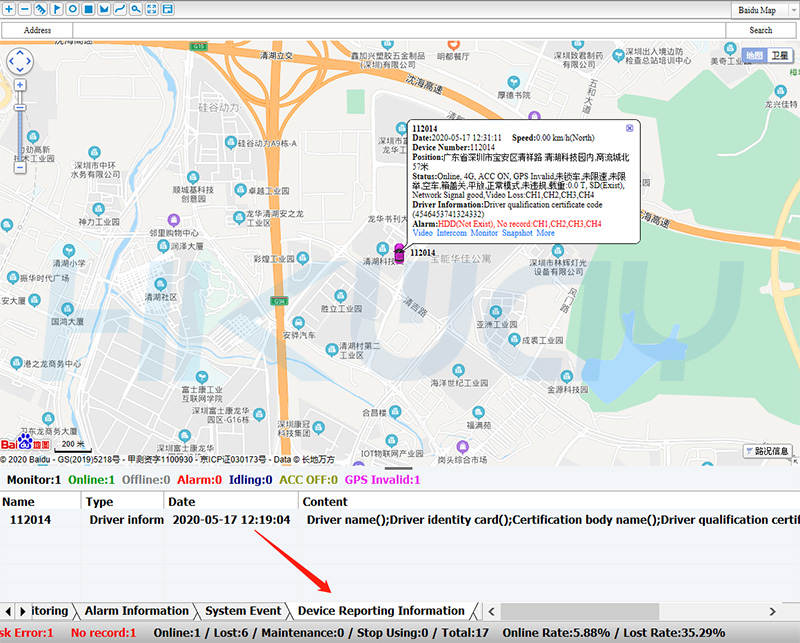

Driver/Student info input in cmsv6 platform:
Note: This product is project based, for more info, pls send us email: info@mdvronline.com
