Product Overview
INTRODUCTION:
AHD vehicle mini dome camera can provide high resolution image, which can be applied inside the vehicles with anti vibration features and compact size. User can choose different lenses (2.8mm and 3.6mm optional), with or without audio function.
FEATURES:
1. Specialized structure for vehicle: easy assembly and disassembly; lockable angle and anti-vibration;
2. Adapt to volatile environments;
3. Anti-jamming&low power design: avoid vehicle circuit interface; support high temperature on vehicle roof;
4. Audio band-pass filter(optional): reduce vibration noise of vehicle engine and frame
5. Good surveillance solutions for public bus, taxi, school bus, law enforcement, truck, coach, trains&trams.
VIDEO:
SPECS:
|
Model |
101 |
|
Sensor |
1/3〃1.3M pixel CMOS |
|
Resolution |
1080P |
|
Format |
NTSC/PAL |
|
Minimum illumination |
0 Lux F1.2 |
|
IR distance |
10m |
|
Sync system |
Internal synchronously |
|
S/N |
≥50dB |
|
Lens |
2.8mm default (3.6mm optional) |
|
Electronic shutter |
Auto |
|
White balance mode |
Auto |
|
Color to black |
External synchronously control |
|
Gamma Correction |
0.45 (default) |
|
Video output |
AHD standard output, 4-pin aviation cable |
|
Power |
12V DC ± 10% |
|
Consumption(Max.) |
180mA/DC12V ±5% |
|
Working temperature |
-40°C ~ 70°C |
|
Weight |
205g |
|
Dimension |
Φ93mm*68mm |

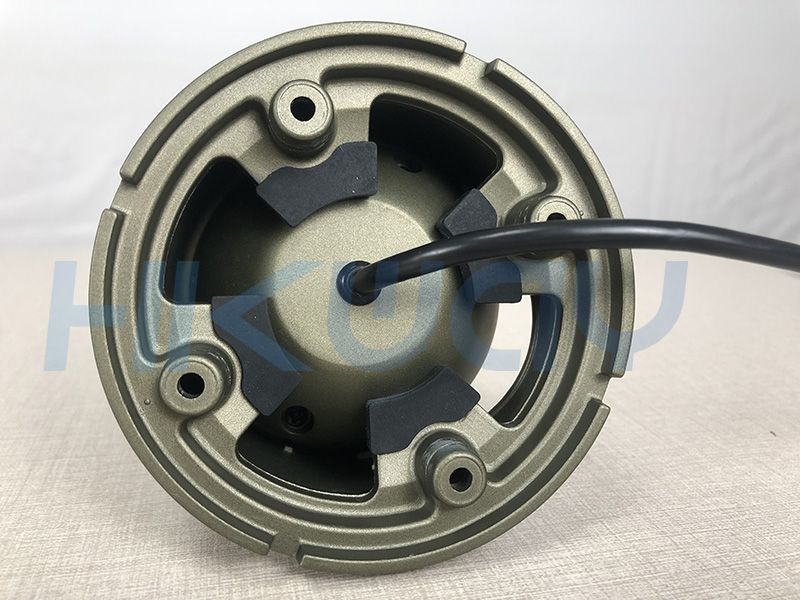

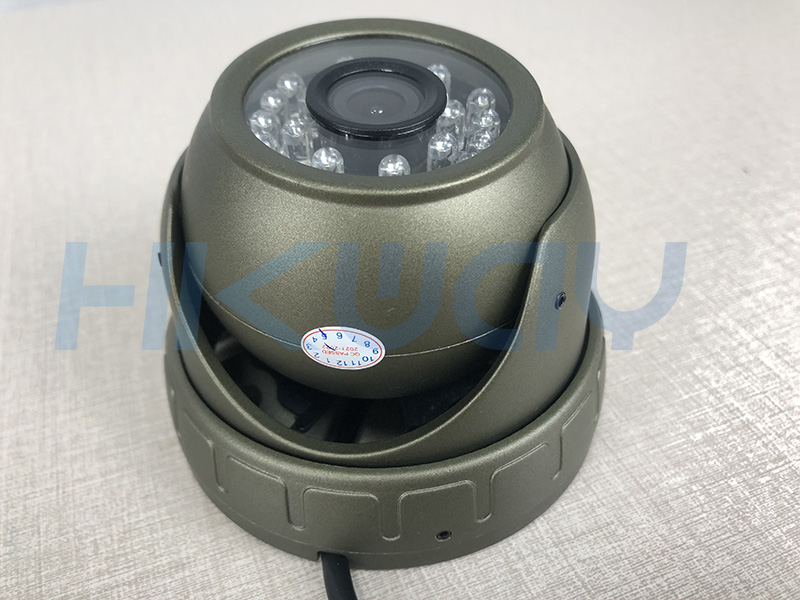

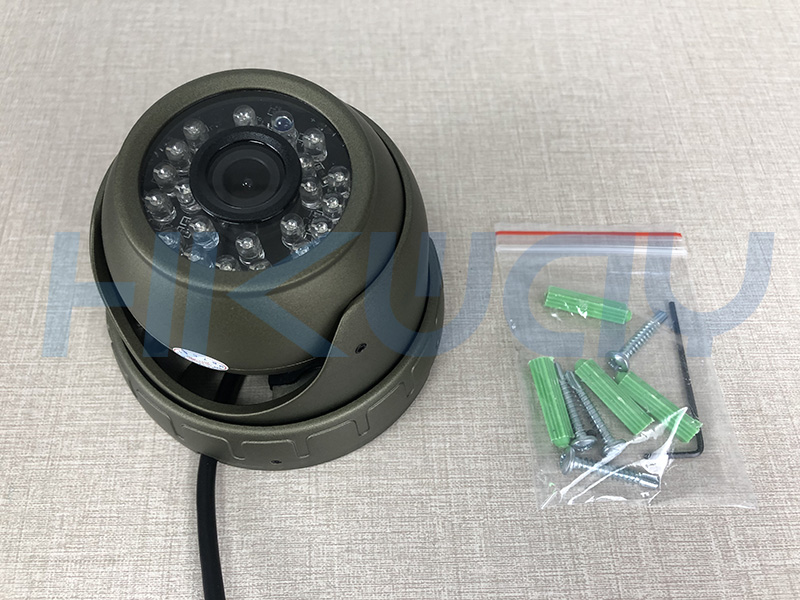

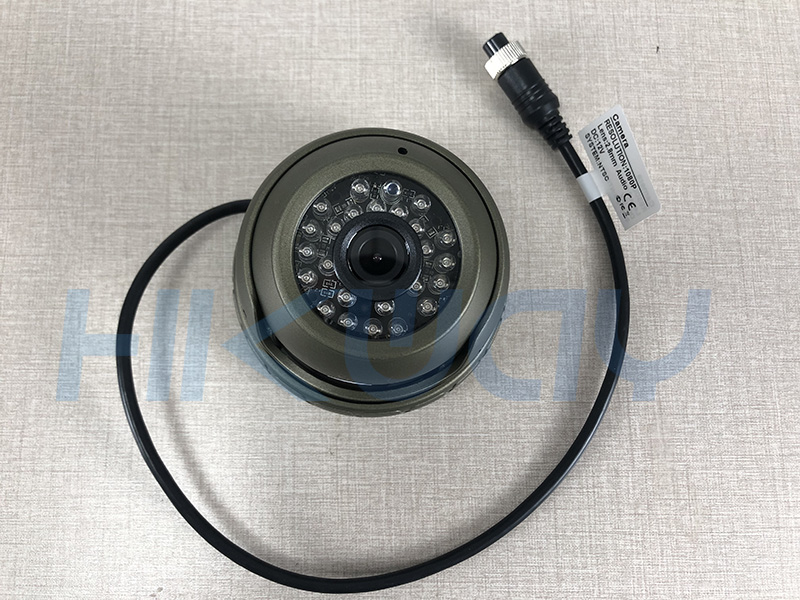

Details:
