Product Overview
INTRODUCTION:
*A6S42G is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring.
*It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI.
*It supports not only video recording in1080P, 720P, AHD, D1, HD1 and CIF formats, but also vehicle travel information recording and wireless data upload.
*With center software it also achieves alarm linkage central monitoring, remote management and playback analysis.
*It is easy to use with simple design, multi-functions, Dual SD cards, superior anti-vibration, flexible installation and high reliability.
FEATURES:
1. Supports 4 channels AHD 1080P
2. Supports Dual SD card for main recording, each SD card can be up to 256GB
3. Supports GPS for location tracking, optional
4. Supports WIFI for video files download, optional
5. Built-in 3G/4G for live view and remote management, optional
6. VGA output standard
7. Built-in G-sensor
8. Built-in super capacitor
VIDEO:
SPECS:
|
Item |
Parameter |
||
|
OS |
Linux |
||
|
Video Compression |
H.264 |
||
|
OSD |
date/time, vehicle ID, etc |
||
|
GUI |
Graphic OSD |
Connect to external monitor, use mouse to set parameters |
|
|
Video& Recording |
Video Input |
4CH 1080P AHD, 4pin Aviation Din, 1.0Vp-p, 75Ω |
|
|
Video Output |
1CH output+VGA output, 1.0Vp-p, 75Ω, 1CH/4CH |
||
|
Preview |
1/4ch split display, Support Event alarm, Rear view full display function. |
||
|
Resolution |
4CH 1080P, and 720P、D1、HD1、CIF optional, |
||
|
Image quality |
0-7 levels adjustable (0 is the best) |
||
|
Recording Mode |
Boot up/Manual/Schedule/Alarm |
||
|
Audio |
Audio input |
4CH |
|
|
Audio output |
1CH |
||
|
Compression |
G.726 , Speed 8KB/s |
||
|
Alarm Input |
4CH |
||
|
Alarm Output |
1CH |
||
|
Interface |
1CH RS232 OR 1CH RS485 |
||
|
Wireless transmission |
Optional, 3G/4G,WCDMA,CDMA2000,TDD-LTE,FDD-LTE.... |
||
|
Position / G-sensor |
GPS optional 、built-in G-sensor，Playback of the route |
||
|
Storage |
Storage |
Maxium 2*256G SD Card |
|
|
playback |
Video search |
by time, mode, etc to search |
|
|
playback |
4CH playback |
||
|
2X, 4X,8X, 16X forward and backward |
|||
|
Safety management |
user password, admin password, support screen lock. |
||
|
Expanding function |
TTS |
Support TTS voice broadcasting |
|
|
Serial expansion |
Can support advertisement screen, PTZ, oil sensor, etc |
||
|
Power and consumption |
power management |
wide voltage adaption, support timely open-shut, delay function.
|
|
|
Input voltage |
DC:+8V - +36V |
||
|
Output voltage |
+12V@1.5A，+5V@1.5A |
||
|
Power protection |
can automatically save the video when sudden power off to ensure the protection of the file. |
||
|
consumption |
Working state＜14W， idle＜0.5W |
||
|
Working environment |
Temperature |
-20℃ - +70℃ |
|
|
Humidity |
20% - 80% |
||
|
SD model |

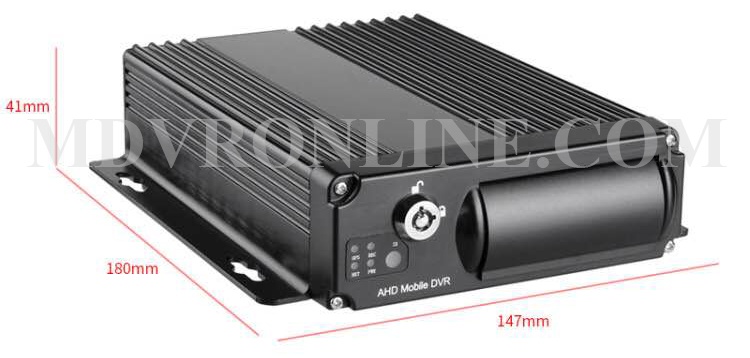

Dimension |
147mm*180mm*41mm |
|
|
Weight |
Approx. 0.65KG |
||
Download the User Manual of HIKWAY A6S42G Mobile DVR
PACKING LIST:
1 x A6S42G 1080P MDVR
1 x AV cable(4ch 4pin AV in+4pin AV out+MIC)
2 x MDVR key
1 x power cable(black: V-; red: V+; yellow: ACC)
1 x Manual
1 x IO cable(ALM1-4, GND, RS485)
1 x Remote control
1 x CD (software)
PHOTOS:
APPLICATION:
This HD Mobile DVR can be applied in multiply of vehicle industry for mobile surveillance, such as public bus, Passenger bus, school bus, trucks, logistics, cargo vans, RV'S, trailers, emergency vehicles, pickup trucks, industrial vehicles, agricultural vehicles, etc. The MDVR is with high definition video recording, it can connect with both AHD cameras and analogue cameras for vehicle CCTV to protect your personnels and valuable goods.
