Product Overview
INTRODUCTION:
- S6S42 is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance.
- It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology.
- It supports video recording in1080P, 720P, AHD, D1, HD1 and CIF formats.
- It is easy to use with simple design, multi-functions, Dual SD cards, superior anti-vibration, flexible installation and high reliability.
FEATURES:
1. Supports 4 channels AHD 1080P
2. Supports SD card for main recording, SD card can be up to 256GB
3. VGA and AV output standard
SPECS:
|
Item |
Parameter |
||
|
OS |
Linux |
||
|
Video Compression |
H.264 |
||
|
OSD |
date/time, vehicle ID, etc |
||
|
GUI |
Graphic OSD |
Connect to external monitor, use mouse to set parameters |
|
|
Video& Recording |
Video Input |
4CH 1080P AHD, 4pin Aviation Din, 1.0Vp-p, 75Ω |
|
|
Video Output |
1CH AV output+VGA output, 1.0Vp-p, 75Ω, 1CH/4CH |
||
|
Preview |
1/4ch split display, Support Event alarm, Rear view full display function. |
||
|
Resolution |
4CH 1080P, and 720P、D1、HD1、CIF optional, |
||
|
Image quality |
0-7 levels adjustable (0 is the best) |
||
|
Recording Mode |
Boot up/Manual/Schedule/Alarm |
||
|
Audio |
Audio input |
4CH |
|
|
Audio output |
1CH |
||
|
Compression |
G.726 , Speed 8KB/s |
||
|
Alarm Input |
4CH |
||
|
Alarm Output |
1CH |
||
|
Serial Port |
Optional,1CH RS232 OR 1CH RS485 |
||
|
Storage |
Maxium 256G SD Card |
||
|
playback |
Video search |
by time, mode, etc to search |
|
|
playback |
4CH playback |
||
|
2X, 4X,8X, 16X forward and backward |
|||
|
Safety management |
user password, admin password, support screen lock. |
||
|
Expanding function |
Serial expansion
|
|
|
|
Can support advertisement screen, PTZ, oil sensor, etc |
|||
|
Power and consumption |
power management |
wide voltage adaption, support timely open-shut, delay function. |
|
|
Input voltage |
DC:+8V - +36V |
||
|
Output voltage |
+12V@1.5A，+5V@1.5A |
||
|
Power protection |
can automatically save the video when sudden power off to ensure the protection of the file. |
||
|
consumption |
Working state＜14W， idle＜0.5W |
||
|
Working environment |
Temperature |
-20℃ - +70℃ |
|
|
Humidity |
20% - 80% |
||
|
SD model |
Dimension |
150mm*150mm*40mm |
|
|
Weight |
0.45KG |
||

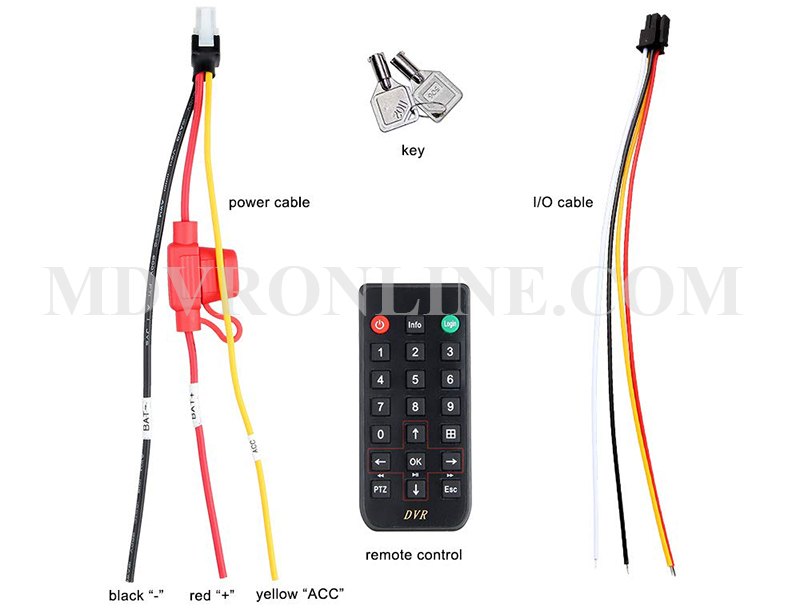

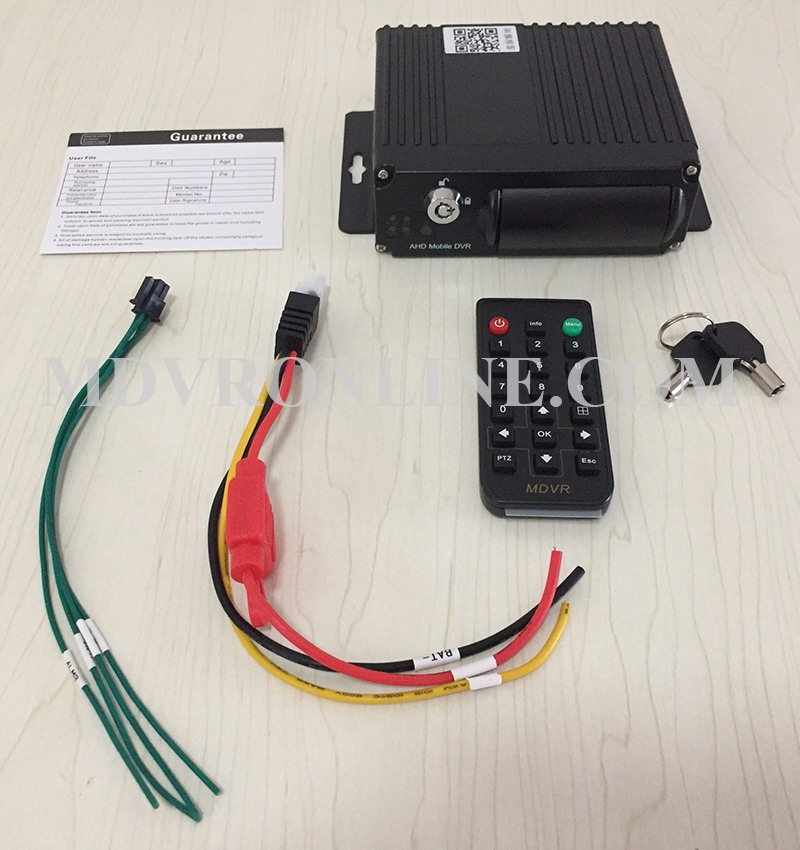

PACKING LIST:
1 x 256GB 1080P SD MDVR (SD card not included)
1 x AV cable for 4pcs cameras connection 1 x alarm cable for 4ch alarm in
1 x power cable(red for positive, black for negative, yellow for ACC).
1 x remote control
1 x English User Manual
1 x CD
2 x keys
1 x IO/Serial cable

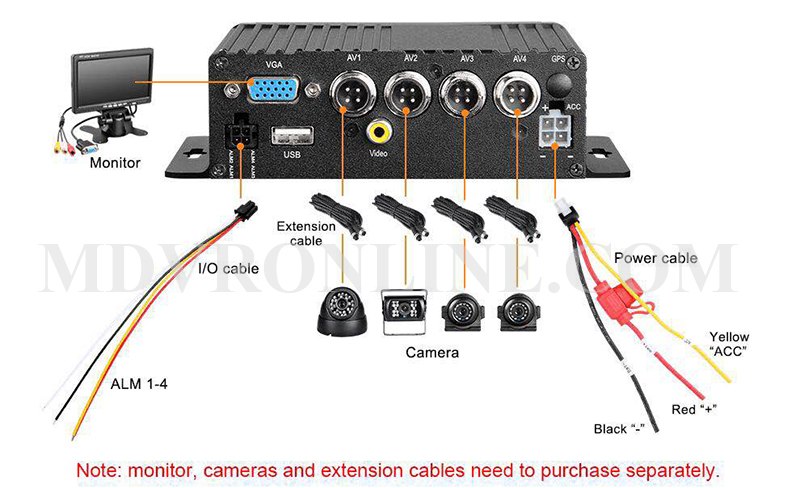

PHOTOS:
APPLICATION:
This HD Mobile DVR can be applied in multiply of vehicle industry for mobile surveillance, such as public bus, Passenger bus, school bus, trucks, logistics, cargo vans, RV'S, trailers, emergency vehicles, pickup trucks, industrial vehicles, agricultural vehicles, etc. The MDVR is with high definition video recording, it can connect with both AHD cameras and analogue cameras for vehicle CCTV to protect your personnels and valuable goods.
