Product Overview
INTRODUCTION:
- A6S41 is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring.
- It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI.
- It supports not only video recording in 720P, 960H, D1, HD1 and CIF formats, but also vehicle travel information recording and wireless data upload.

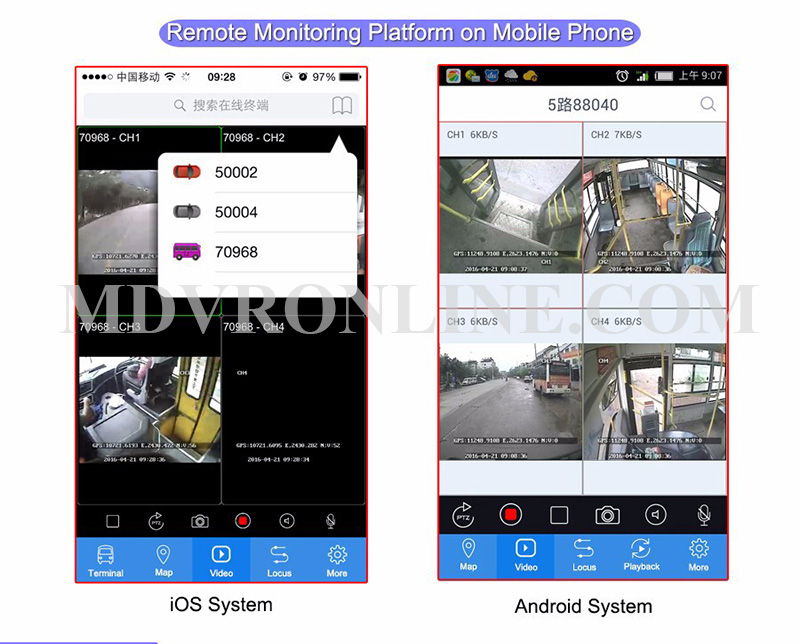

- With center software it also achieves alarm linkage central monitoring, remote management and playback analysis.
- It is easy to use with simple design, multi-functions, Dual SD cards, superior anti-vibration, flexible installation and high reliability.
FEATURES:
1. Supports 4 channels AHD 720P
2. Supports dual SD cards for main recording
3. Supports GPS for location tracking, optional
4. Supports WIFI for video files download, optional
5. Built-in 3G/4G for live view and remote management,optional
6. VGA output standard
7. Built-in G-sensor
VIDEO:
SPECS:
|
Item |
Parameter |
||
|
OS |
Linux |
||
|
Video Compression |
H.264 |
||
|
OSD |
GPS info,date/time, vehicle ID, etc |
||
|
GUI |
Graphic OSD |
Connect to external monitor, use mouse to set parameters |
|
|
Video& Recording |
Video Input |
4CH 720P AHD, 4pin Aviation Din, 1.0Vp-p, 75Ω |
|
|
Video Output |
1CH output+VGA output, 1.0Vp-p, 75Ω, 1CH/4CH |
||
|
Preview |
1/4ch split display, Support Event alarm, Rear view full display function. |
||
|
Resolution |
720P、960H、D1、HD1、CIF optional, |
||
|
Image quality |
1-6 levels adjustable (1 is the best) |
||
|
Recording Mode |
Boot up/Manual/Schedule/Alarm |
||
|
Pre-recording |
15 seconds |
||
|
Post-recording |
15-300 seconds |
||
|
Audio |
Audio input |
4CH |
|
|
Audio output |
1CH |
||
|
Compression |
G.726 , Speed 8KB/s |
||
|
Alarm Input |
4CH |
||
|
Alarm Output |
1CH |
||
|
Interface |
1CH RS232 OR 1CH RS485 (can be expansible) |
||
|
Intercommunication: support |
|||
|
Sensor, 4ch inputs, 1ch output |
|||
|
SIM slot * 1 |
|||
|
USB2.0 *1 |
|||
|
Wireless transmission |
Optional, 3G/4G(WCDMA,CDMA2000,TDD-LTE,FDD-LTE....) |
||
|
Position / G-sensor |
GPS optional 、built-in G-sensor，Playback of the route |
||
|
Storage |
Storage |
Maxium 2*256G SD Card |
|
|

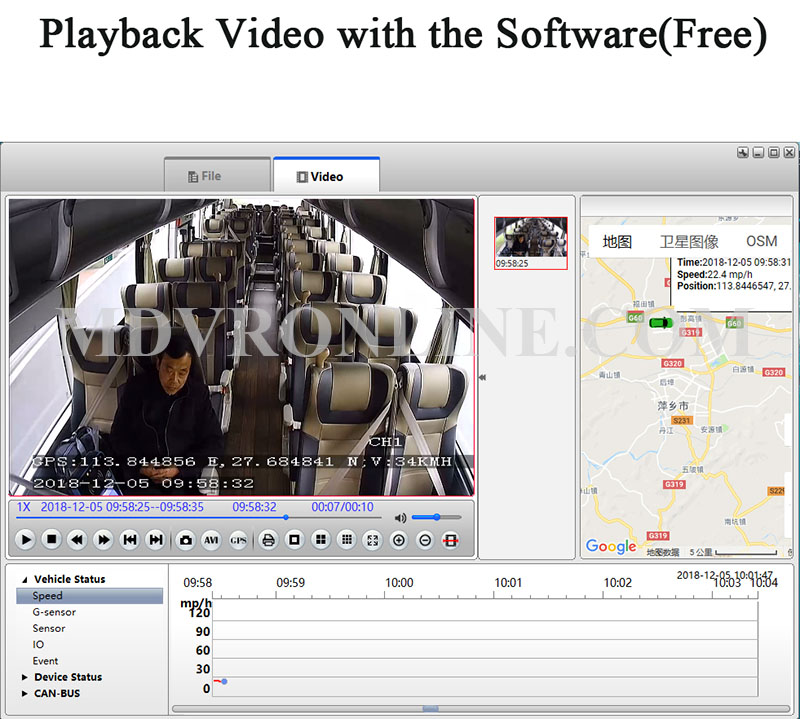

playback |
Video search |
by time, mode, etc to search |
|
|
playback |
4CH playback |
||
|
2X, 4X,8X, 16X forward and backward |
|||
|
Safety management |
user password, admin password, support screen lock. |
||
|
Expanding function |
TTS |
Support TTS voice broadcasting |
|
|
Serial expansion |
Can support advertisement screen, PTZ, oil sensor, etc |
||
|
Power and consumption |
power management |
wide voltage adaption, support timely open-shut, delay function.
|
|
|
Input voltage |
DC:+8V - +36V |
||
|
Output voltage |
+12V@2A |
||
|
consumption |
Working state＜9W(without cameras)， idle＜0.5W. Max. 28W(with camera) |
||
|
Working environment |
Temperature |
-20℃ - +70℃ |
|
|
Humidity |
8% - 90% |
||
|
Physical info |

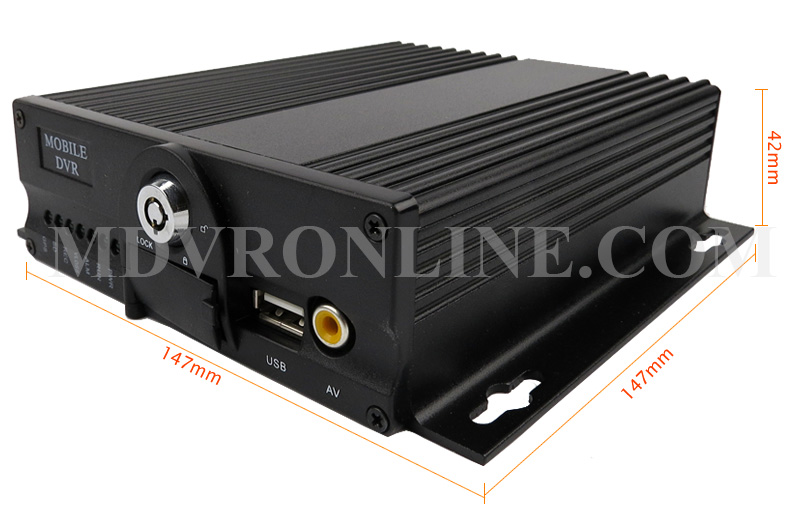

Dimension |
147mm*47mm*42mm |
|
|
Weight |
Approx. 0.45KG |
||
PACKING LIST:
1 x A6S41 MDVR
1 x AV cable(4ch 4pin AV in+4pin AV out+MIC)
2 x MDVR key
1 x power cable(black: V-; red: V+; yellow: ACC)
1 x Manual
1 x IO cable(ALM1-4, GND, RS485)
1 x Remote control
1 x CD (software)
PHOTO:
