Product Overview
INTRODUCTION:
AHD vehicle backup camera can provide high resolution image 1920 (H) x 1080 (V) , which can be applied outside the vehicles with anti vibration&waterproof features and compact size. User can choose different lenses (2.8mm and 3.6mm optional). It also has perfect night vision which enable it to work in dark night.
FEATURES:
1. Specialized structure for vehicle: easy assembly and disassembly; lockable angle and
anti-vibration;
2. Adapt to various environments and perfect night vision in dark night;
3. Anti-jamming&low power design: avoid vehicle circuit interface;
4. IP69 complete waterproof design for external environment;
5. 18 Infrared Lights - 50ft of Night Vision
6. Good surveillance solutions for public bus, taxi, school bus, law enforcement, truck,
coach, trains&trams.
VIDEO:
SPECIFICATIONS:
|
Model |
Mirror Mount Car Camera |
|
Sensor |
1/3〃2.0M pixel CMOS |
|
Resolution |
1080P (1920*1080) |
|
Format |
NTSC/PAL |
|
Minimum illumination |
0 Lux WITH IR, Color 0.05Lux |
|
IR distance |
10m |
|
Sync system |
Internal synchronously |
|
S/N |
≥50dB |
|
Lens |
2.8mm M12 default |
|
Electronic shutter |
Auto |
|
White balance mode |
Auto |
|
Mirroring function |
optional |
|
Color to black |
External synchronously control |
|
Gamma Correction |
0.45 (default) |
|
Video output |
AHD standard output, 4-pin aviation cable |
|
Power |
12V DC ± 10% |
|
Consumption(Max.) |
180mA/DC12V ±10% |
|
Working temperature |
-40°C ~ 70°C |
|
Weight |
300g |
|
Dimension |
75mm*49mm*109mm |

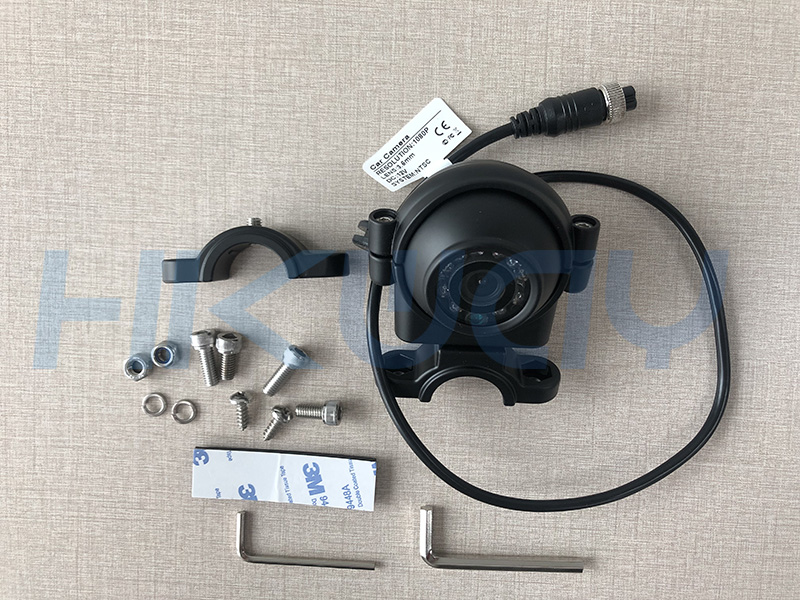

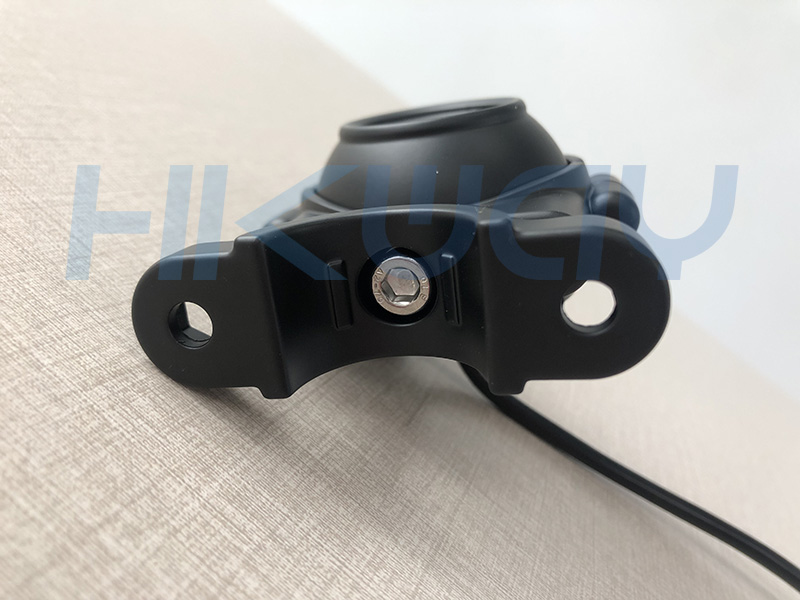

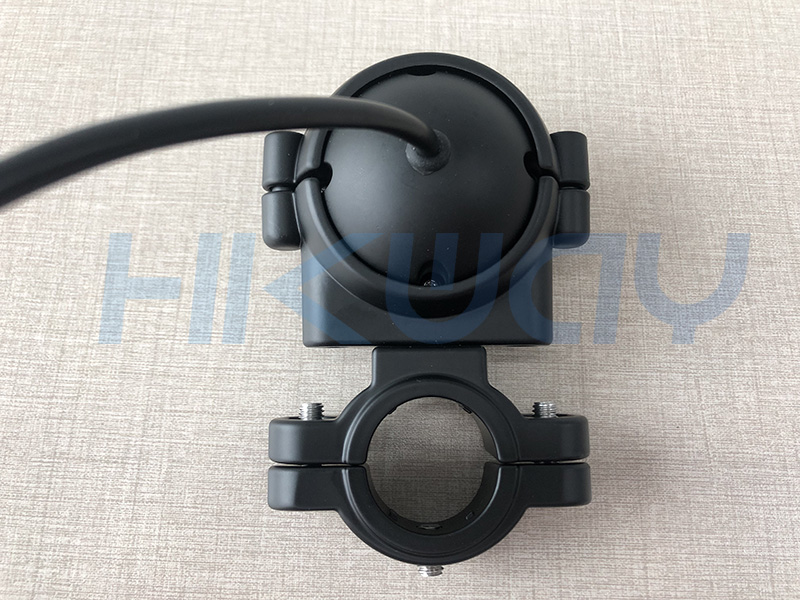

PRODUCT DETAILS:
