Product Overview
Function:

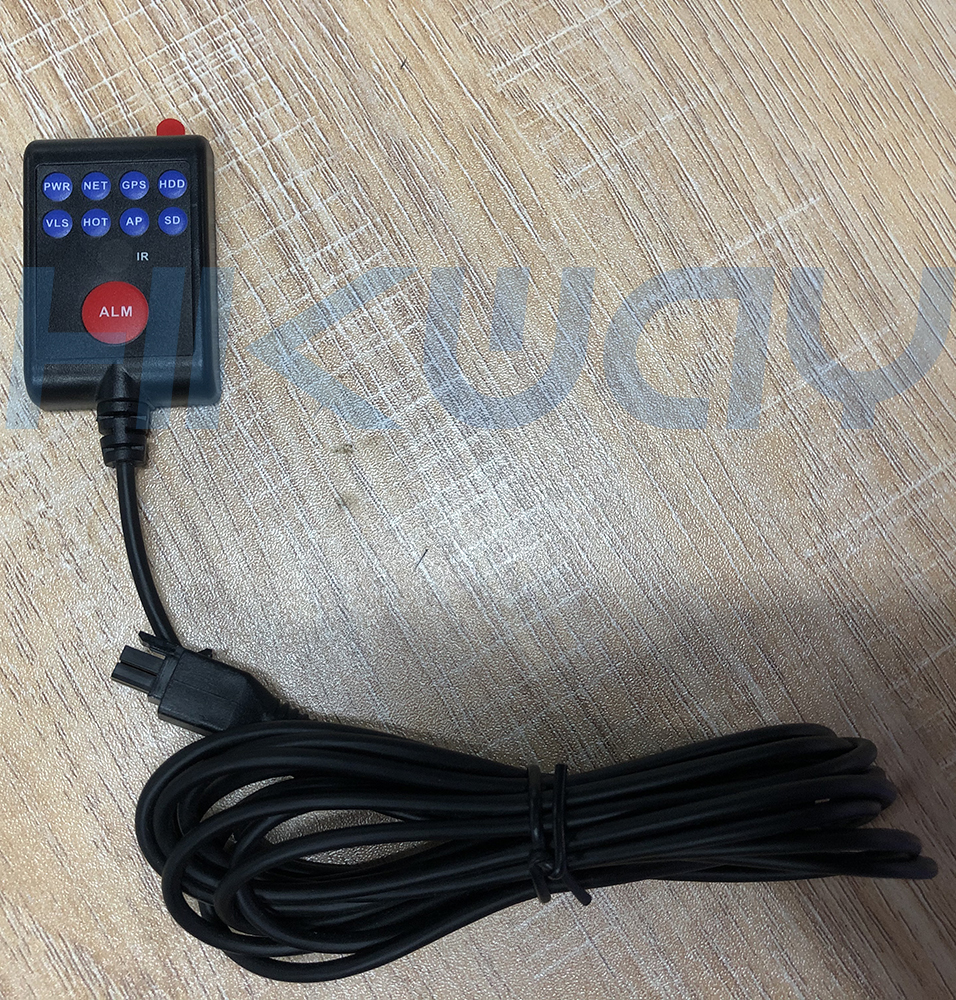

The state of the device can be viewed through the indicator light of the LED panel, and control the device by remote control. It’s suitable for device installation in a secluded location, difficult to use when viewing status and control. The panel also supports a one-key alarm function. Press the red ALM key on the panel to send alarm information to the platform.
Application:
The device provides 12V power to the LED panel. TX on the interface connects to the device RX. The RX on the interface connects to the TX of the device. In the serial port function menu on the device, the serial port function of RS232 needs to be changed to LED panel Baud rate: 9600. Save and restart the device after the changes, and you can use it normally.
VIDEO:
Details:
