Product Overview
INTRODUCTION:
The DSM camera is connected to the AI Mobile DVR, which is used to monitor and analyze the driving state of the driver and provide a camera with relevant early warning functions. It can detect the driver's fatigue driving in real time, such as distraction, phone calls, smoking, yawning, etc. and timely warnings.
FEATURES:
1. Specialized structure for vehicle: easy assembly and disassembly; lockable angle and anti-vibration;
2. Adjustable angle of 130 degrees
3. CMOS image sensor, and F=6mm len of horizontal view angle of 51 degrees
4. Built-in 2pcs Φ9 IR led
5. 4PIN Aviation din connector and 3M sticker for easy installation.
SPECIFICATIONS:
|
Sensor |
1/2.8"CMOS |
|
Resolution |
1280H*720V |
|
Format |
NTSC/PAL |
|
Minimum illumination |
0.1 Lux F1.2 |
|
Sync system |
Internal synchronously |
|
S/N |
≥50dB |
|
Lens |
6MM |
|
Electronic shutter |
Auto |
|
Audio |
Yes |
|
White balance mode |
Auto |
|
Mirroring function |
Turn on, optional |
|
Color to black |
External synchronously control |
|
Gamma Correction |
0.45 (default) |
|
Video output |
coaxial HD output, 4-pin aviation cable |
|
Power |
12V DC ± 10% |
|
Consumption(Max.) |
150mA/DC12V ±10mA |
|
Working temperature |
-40°C ~ 70°C |
|
Dimension |
L:88*W:50*H:110mm(±1mm) |
|
Weight |
0.15KG |
VIDEO:

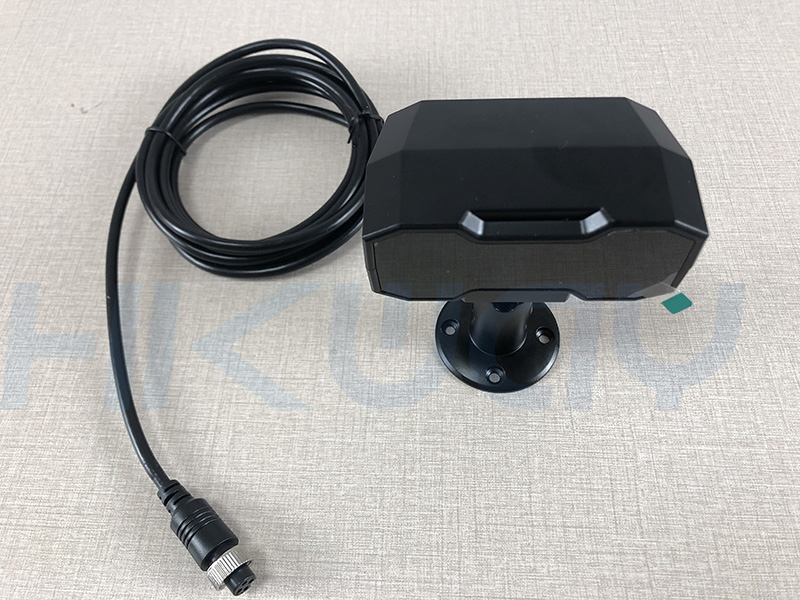

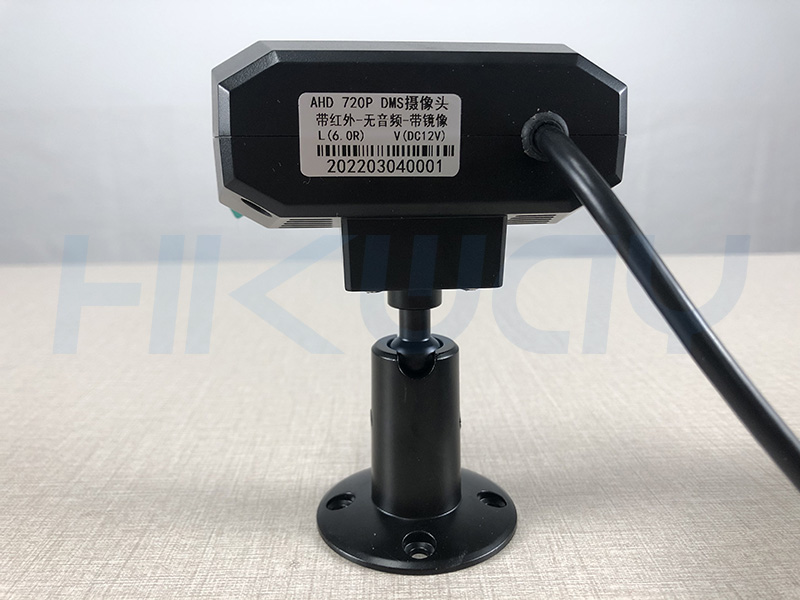

DETAILS:
