Product Overview
INTRODUCTION:
The Hikway Dual-len camera can provide high resolution image, which can be applied inside the vehicles with anti-vibration features and compact size. Connected with the Hikway MDVR, provide capture of road view and driver monitoring.
SPECIFICATIONS:
|
Model |
106 |
|
|
Dual Lens |

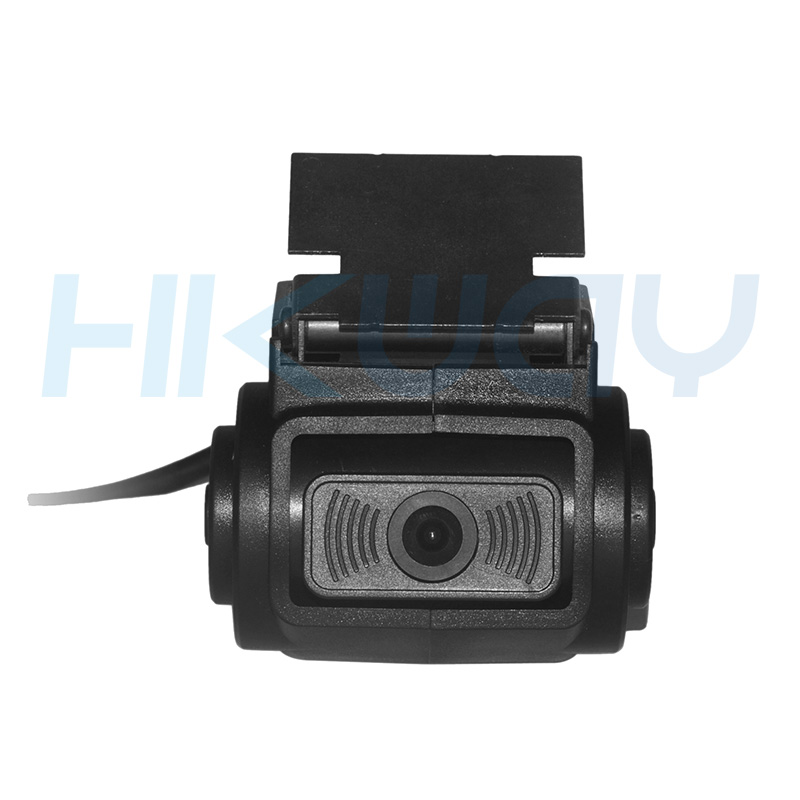

Front(Road) camera |

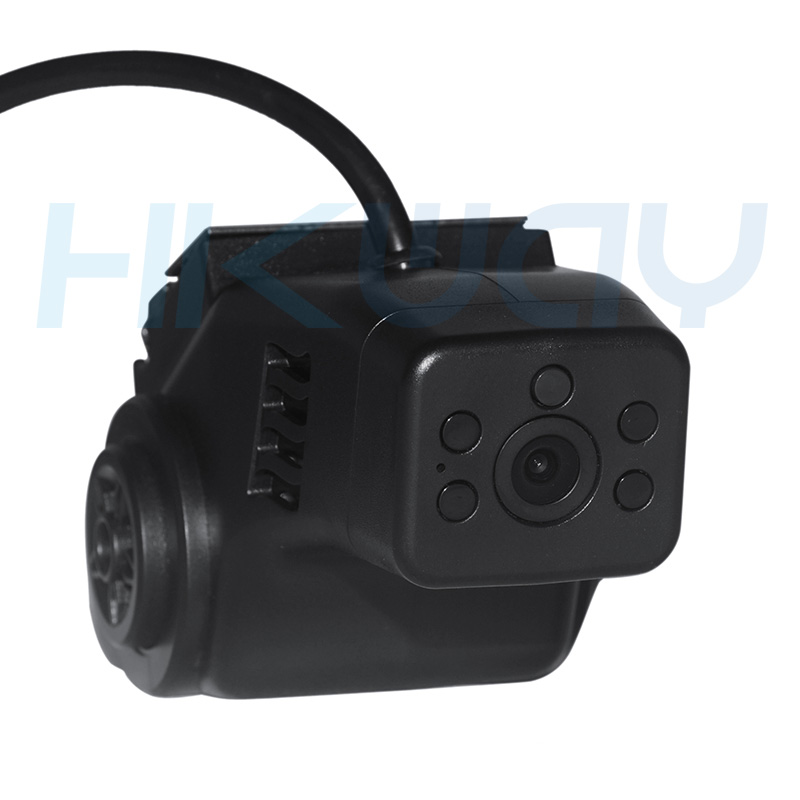

Rear (driver) Camera |
|
Sensor |
1/3〃2.0M pixel CMOS |
|
|
Resolution |
1080P |
|
|
Format |
PAL/NTSC |
|
|
Minimum illumination |
0 Lux F1.2 |
|
|
IR distance |
10m |
|
|
Sync system |
Internal synchronously |
|
|
S/N |
≥50dB |
|
|
Lens |
2.8mm |
2.1mm |
|
Angle |
90° |
135° |
|
Audio |
Yes |
|
|
Electronic shutter |
Auto |
|
|
White balance mode |
Auto |
|
|
Color to black |
External synchronously control |
|
|
Gamma Correction |
0.45 (default) |
|
|
Video output |

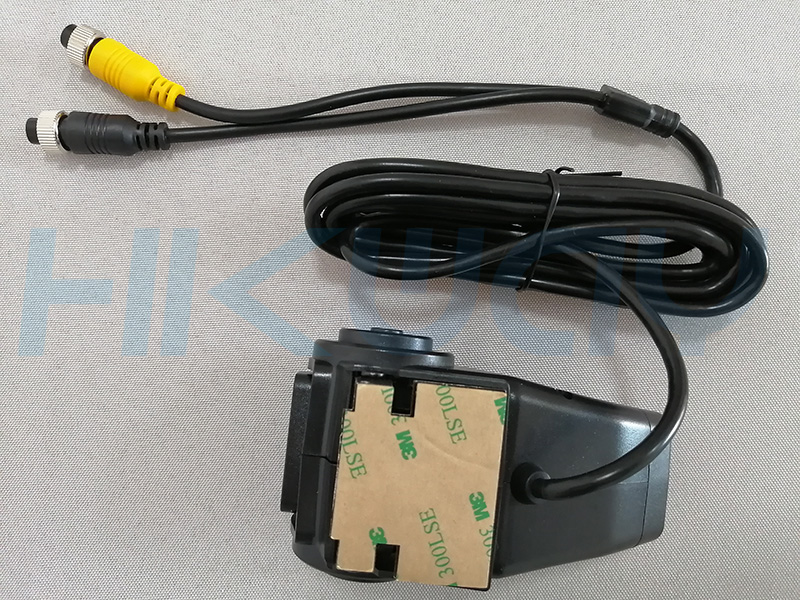

AHD standard output, 4-pin aviation cable |
|
|
Power |
12V DC ± 10% |
|
|
Consumption(Max.) |
180mA/DC12V ±5% |
|
|
Working temperature |
-40°C ~ 70°C |
|
|
Weight |
260g |
|
VIDEO:
PRODUCT DETAILS:
