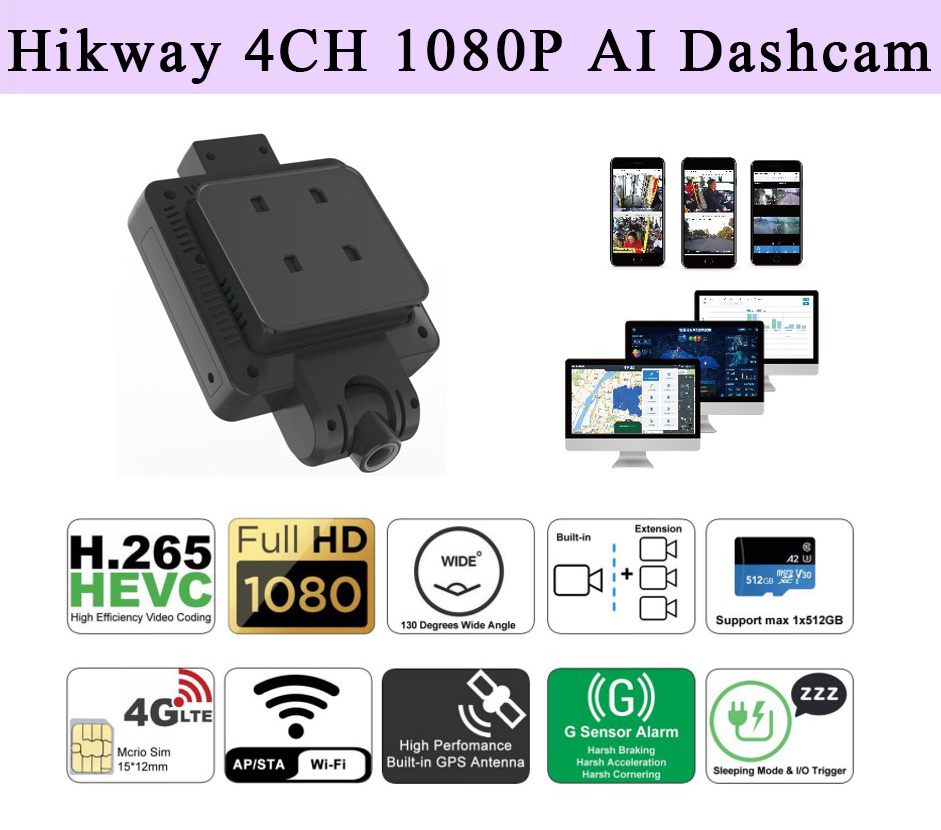

Product Overview
Product Features
H.265 & H.264 encoding and decoding,Save storage space and transmission flowï¼›
Support 4-channel 1080p * 15fps / 2-channel 1080p * 30fps, 4-channel 720p, D1 and other codecs;
Built in one 1080p camera and external three HD cameras for easy installation;ï¼›
Built in 2CH AI intelligent algorithm, which can support ADAS, DMS and BSD functionsï¼›
Built in GPS precise positioningï¼›
Support 1 TF card,super capacitor double guarantees the integrity of video filesï¼›
Support 1 SIM card, 4G module can support global frequency bandï¼›
Support WiFi hotspot.
Support mobile app, client, platform software preview video and parameter configurationï¼›
Support 4CH IO alarm input and2CH of RS232ï¼›
Built in speaker and microphone, Support voice intercom between dash camera and platform. TTS voice broadcast;
One key SOS emergency alarm; Support low-power sleepï¼›
Special file system to improve disk reading and writing efficiency,More stable video recordingï¼›
Specifications:
|
Type |
Technical Specifications |
|
CPU |
ARM Cortex CA9 Binuclear @1.4GHz,Total coding resources 1080p*60fps |
|
Memory |
512MB DDR3 |
|
Video Input |
Active Pixels:1920×1080,1080×720,D1,HD1,CIF; H.264&H.265 format |
|
1-ch Built-in CMOSAHD camera,Low illumination 0.01LUX,Angle of view82° |
|
|
3-chExternal camera |
|
|
Video Output |
1-ch CVBS, 1.0Vp-p, 75Ω,Support full screen and 4-ch segmentation |
|
Audio input / output |
Built-in 1-ch MIC input, Built-in 1-ch speaker output;G.711a format |
|
Video recording resolution |
4-ch 1080p*15fps, 720p/D1*30fps,Simultaneous recording of sound and video. |
|
G-Sensor |
Built-in 3-axis acceleration senso |
|
IO |
2-ch RS232, reserved for communication with peripherals |
|
Alarm Input |
4-ch Switching value input, |
|
Positioning module |
Built-in GPS Positioning Module |
|
4G |
1 SIM card interface |
|
WIFI |
802.11b/g/n，built-in 4G module, TDD-LTE, FDD-LTE |
|
TF Card |
Support 1 TF card, Support16G/32G/64G/128G/256GB |
|
USB(Not support) |
Reserved interface |
|
Upgrade mode |
TF card upgrade, FTP remote upgrade |
|
AI - ADAS |
Lane departure, collision alarm, Distance detection .etc |
|
AI - DSM |
Fatigue driving detection, Smoking, mobile phone, Occlusion, Unsafe driving behavior habit detection |
|
AI - BSD (Not support) |
Left blind area and right blind area detection |
|
Input voltage |
DC:+10V ～ +36V |
|
Power waste |
Normal working state ＜ 7.5W (without external equipment) |
|
Power off protection |
Super capacitor design, support abnormal power failure, ensure the integrity of video files |
|
Working Temperature |
-10℃～+70℃ |
|
Working relative temperature |
20% to 80% |
|
Equipment size |
95mm*130mm*45mm |
|
Net weight |
0.3kg |
Download of Quick Manual of 4G AI Dashcam
